Classic 17 Boat Plans (C17)

[C17] Boat plans for a  small but practical outboard boat with a cuddy cabin.

$90.00$115.00

Clear
SKU: C17-plans Category:

Description

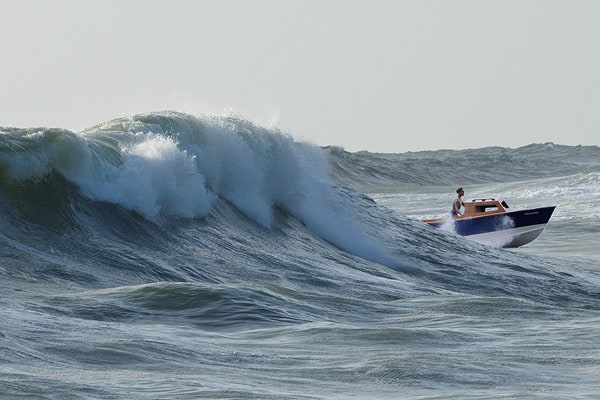

The C17 is a compact cruiser with a seaworthy classic style hull similar to the C19. The hull is based on our C19 design: generous volume, ample freeboard, well-defended bow. In proper hands, this boat can take bad weather safely. The deadrise is 45 degrees at the cutwater progressing towards 11 degrees at the transom. This an ideal hull shape that will run smoothly in bad weather but moderate enough to provide good stability at slow speed without the wild roll typical of deeper vee hulls. This boat’s transom is designed for a standard 20″ shaft. The transom can easily be modified to accept other shaft lengths.


Click here to see study plans


Related Kits:

CNC Kit – MarinEpoxy Kit – SilverTip Epoxy Kit

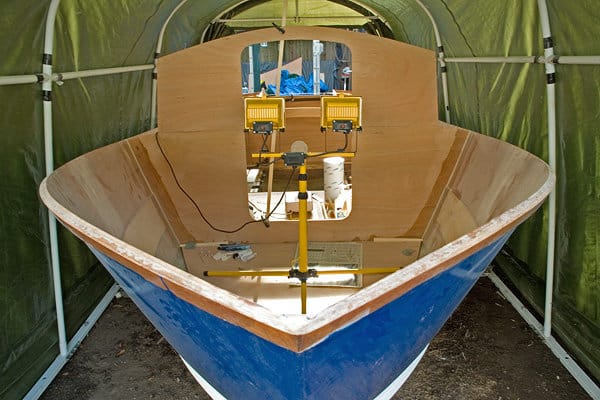

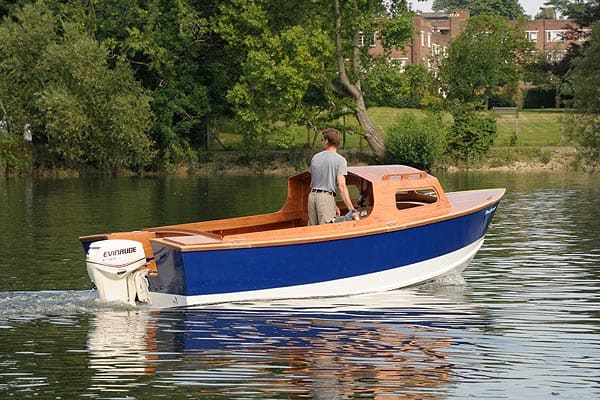

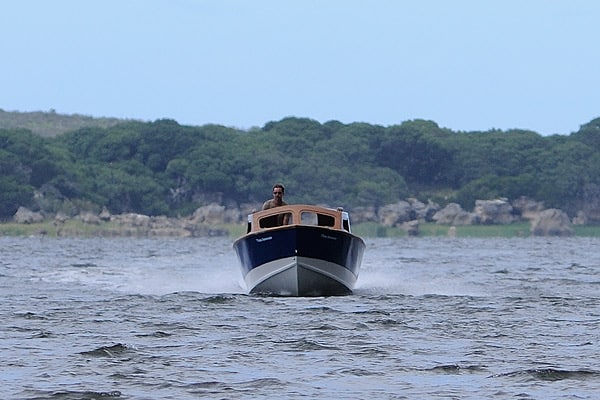

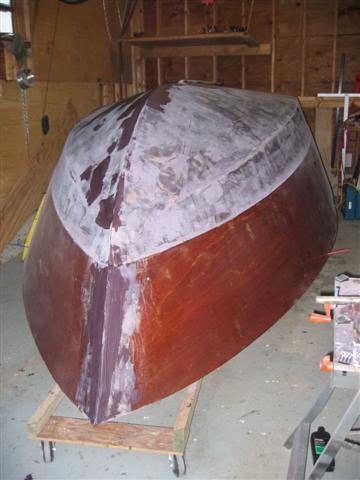

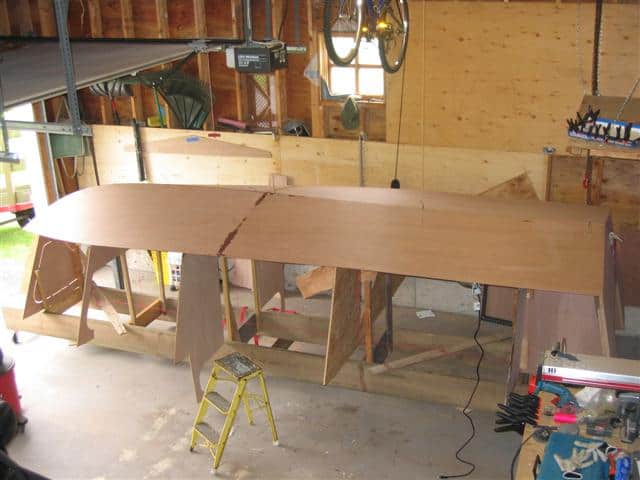

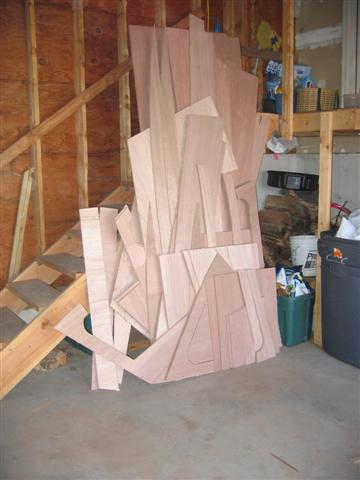

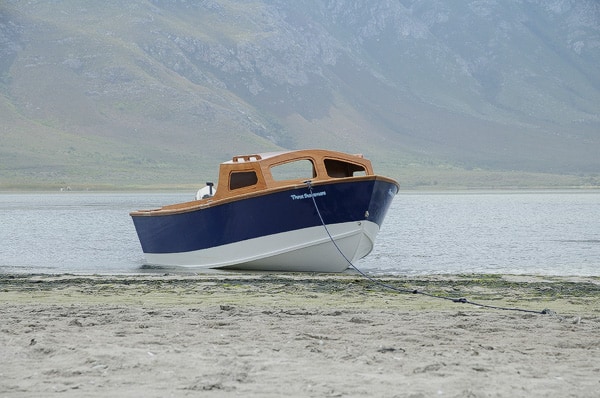

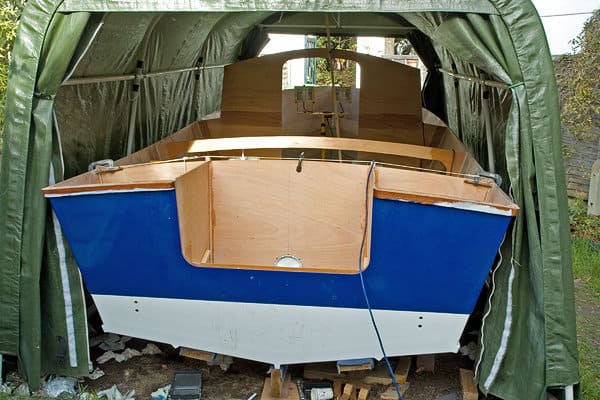

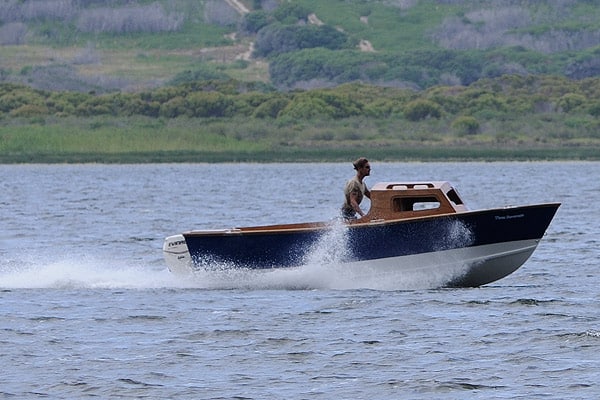

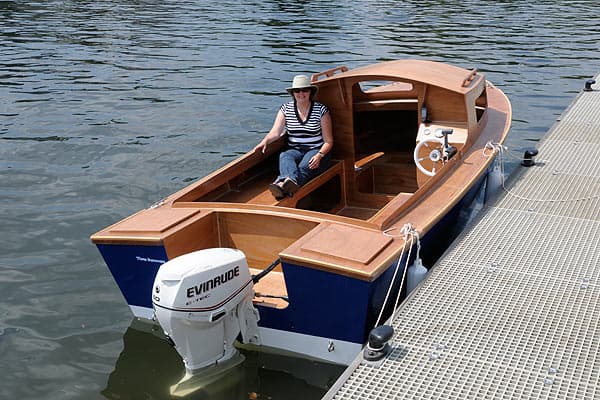

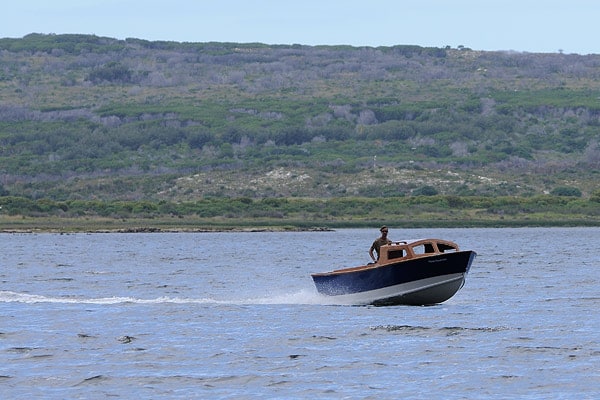

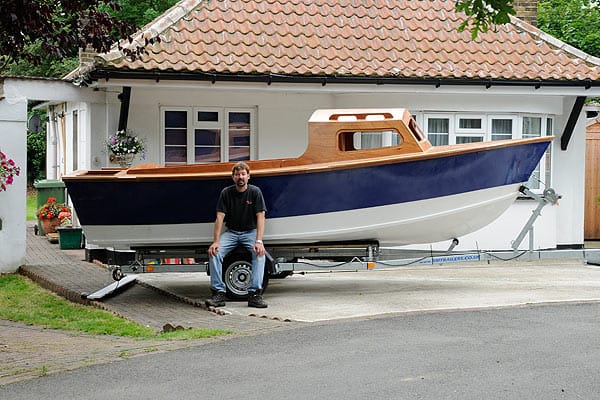

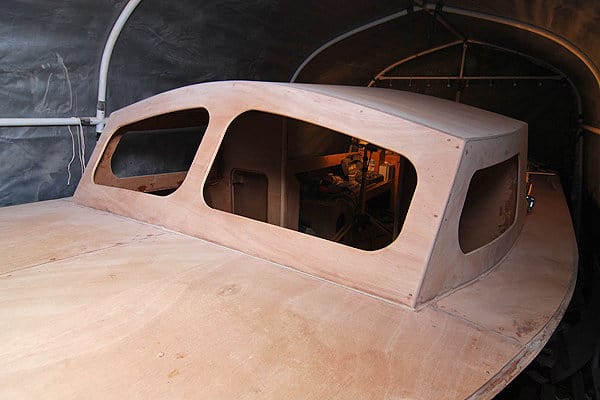

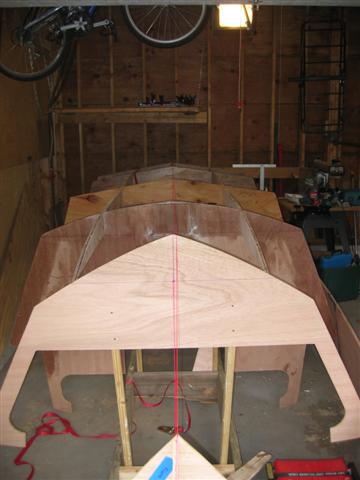

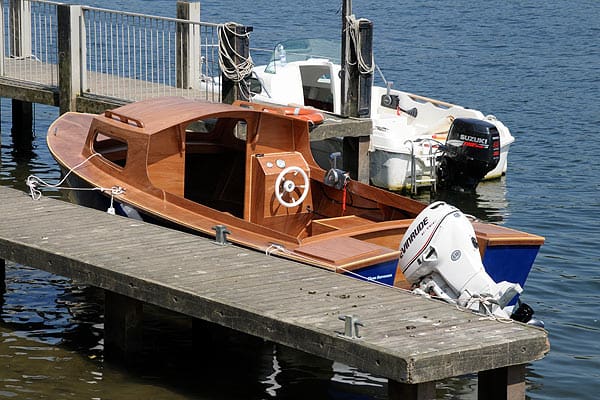

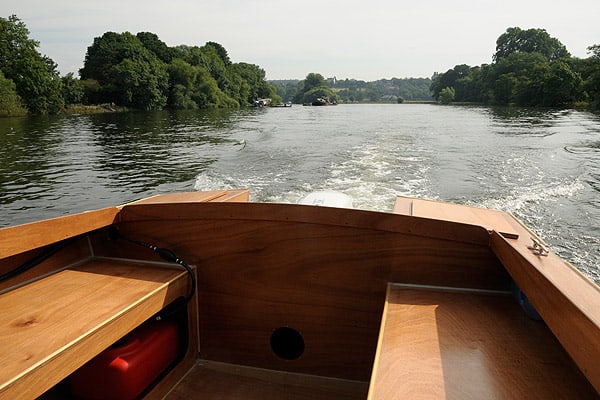

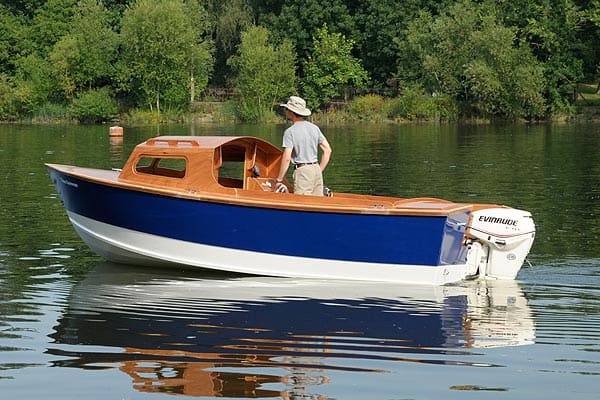

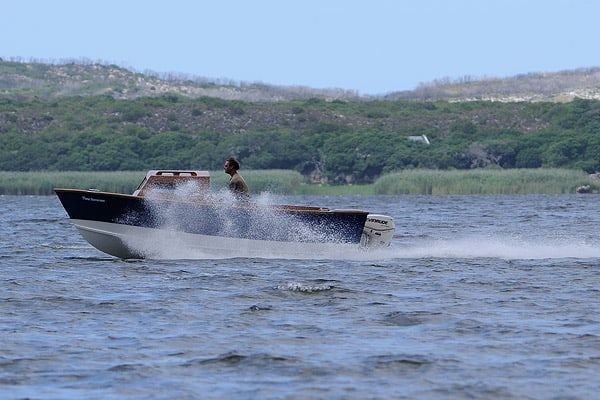

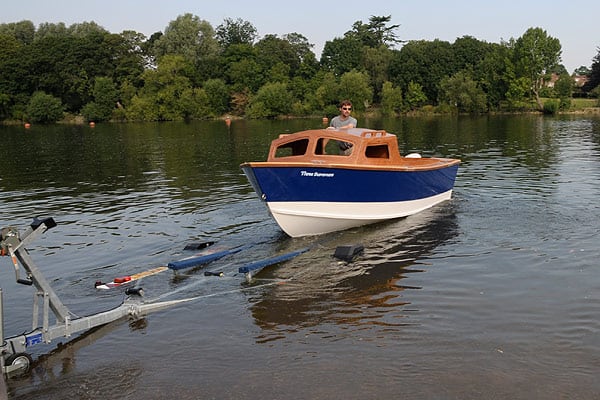

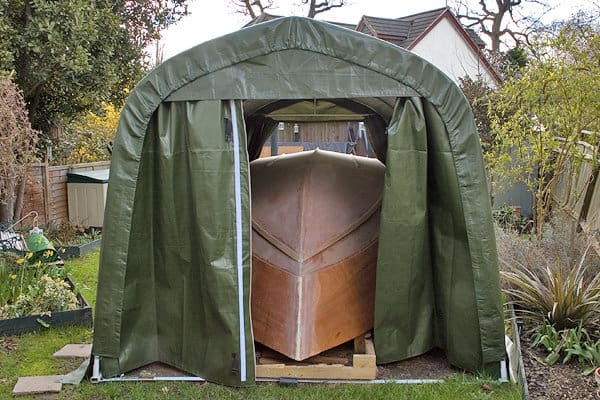

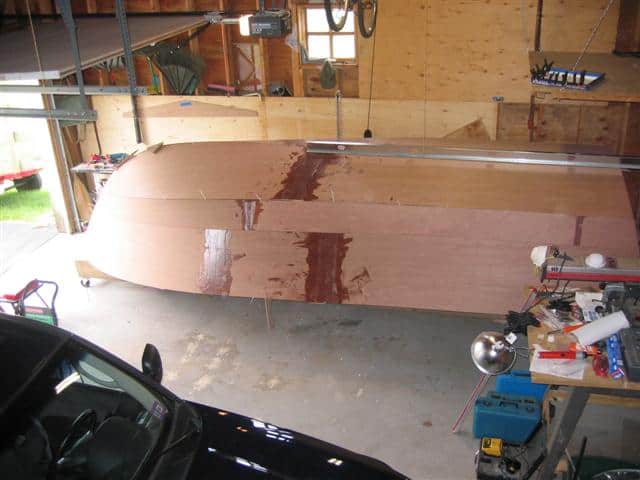

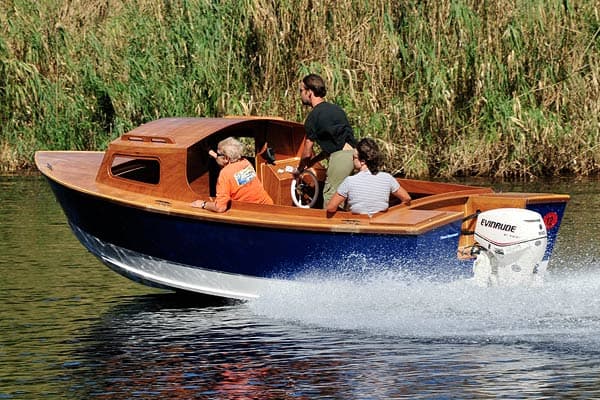

Gallery


Additional information

Weight N/A
Dimensions N/A
Specifications

LOA: 17' 2" 5,24 m Max. Beam: 7' 18 cm Hull draft at DWL: 8" 20 cm Displacement DWL: 1,500 lbs 682 kg PPI at DWL: 350 lbs 159 kg Hull weight: 650 lbs. 285 kg HP 50 Material: Stitch & Glue
