Console and Pilothouse Plans

The console plans include the plans for all of our consoles as well as the pilothouse plans.


SKU: console-plans Category:


If you are purchasing a CNC kit please consider purchasing the console CNC kit at the same time. You will be able to save on the console as well as the shipping.
You are purchasing PDF plans only. Upon completion of your purchase, you will be given a link to download the plans. This link will also come to the email address you provided at the time of purchase.

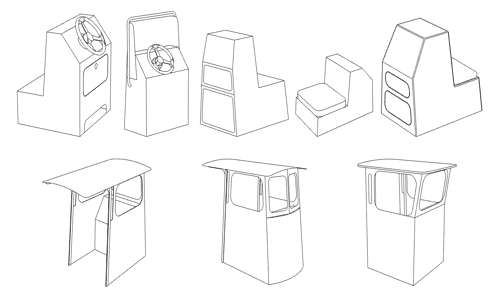

Standard Console PDF – Short Standard Console PDF – Flats Console PDF – Short Flats Console PDF – Large Console PDF
Pilothouse Type 1 PDF – Pilothouse Type 2 PDF – Pilothouse Type 3 PDF
