Fast Launch 26 Boat Plans (FL26)

[FL26] Fast Launch 26

$295.00$320.00

Clear
SKU: FL26-Plans Category:

Description

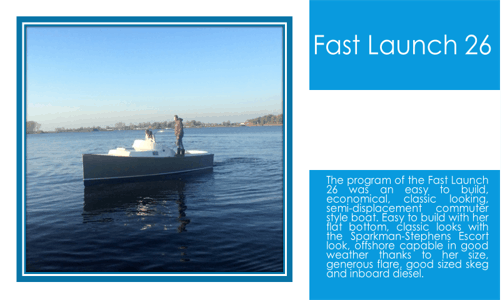

The program of the Fast Launch 26 was an easy to build, economical, classic looking, semi-displacement commuter style boat.
Easy to build with her flat bottom, classic looks with the Sparkman-Stephens Escort look, offshore capable in good weather thanks to her size, generous flare, good sized skeg and inboard diesel.
Her hull lines are well balanced and she will perform well in a wide range of speeds from economical displacement speed ( 7mph) to semi-planing at 18 mph with the 50 HP engine option.
Moderate stern volume and fine entry combined with a good size skeg will keep her on track in bad weather. The fine well immersed bow will reduce pounding and the generous flare in the topsides not only looks good but add reserve buoyancy. Draft is a moderate 22″ with a well protected propeller. Shaft and prop will not suffer from occasional grounding.


Click here to see study plans


Related Kits:

CNC Kit – MarinEpoxy Kit – SilverTip Epoxy Kit

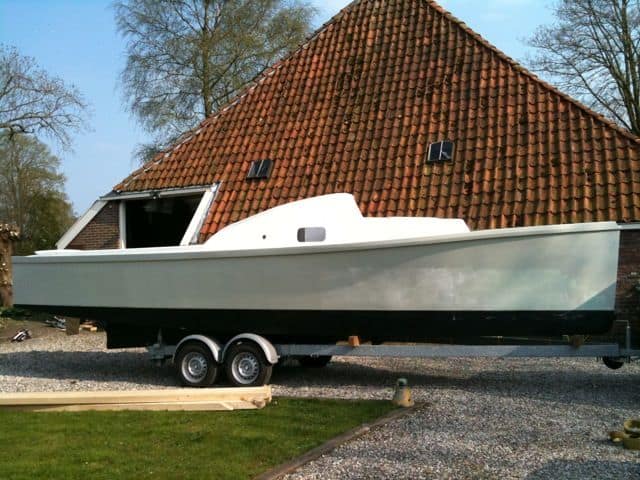

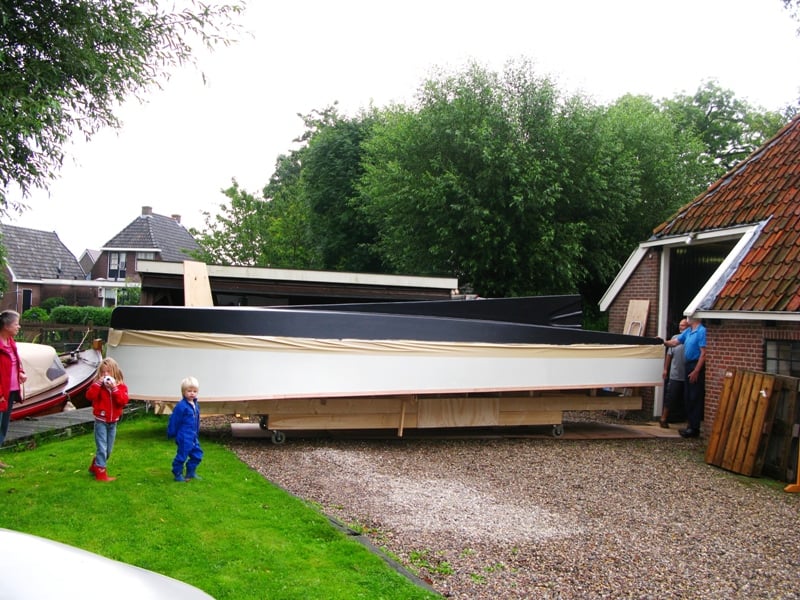

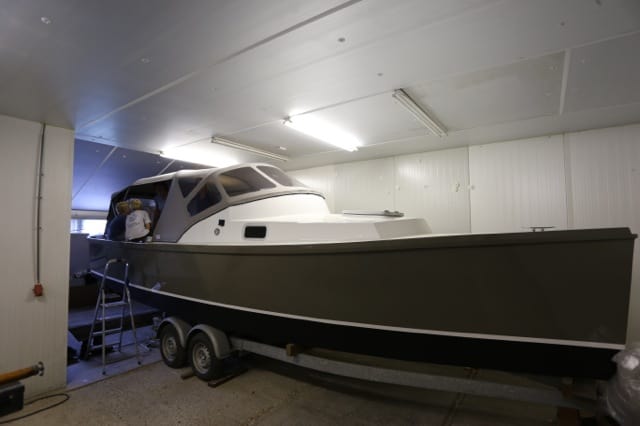

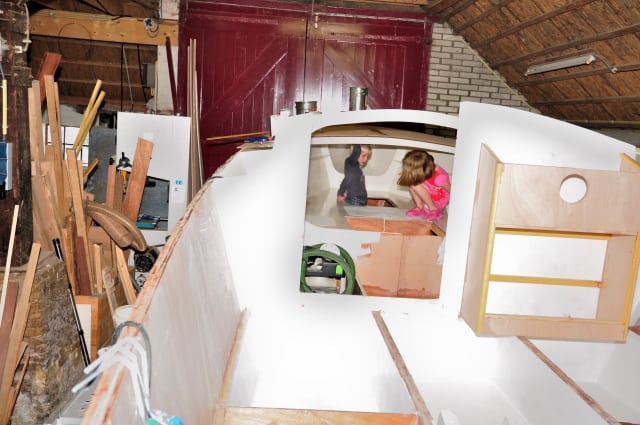

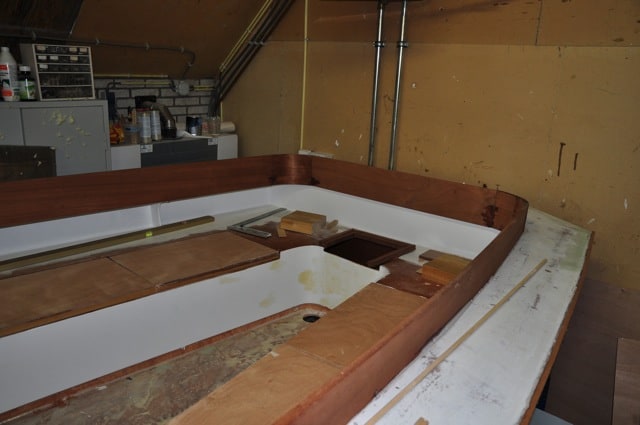

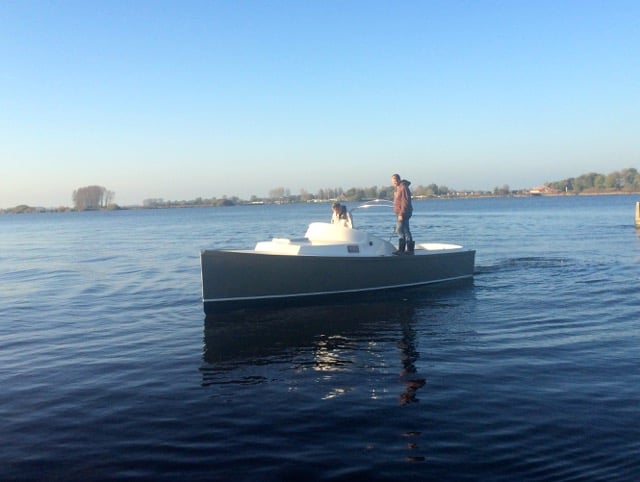

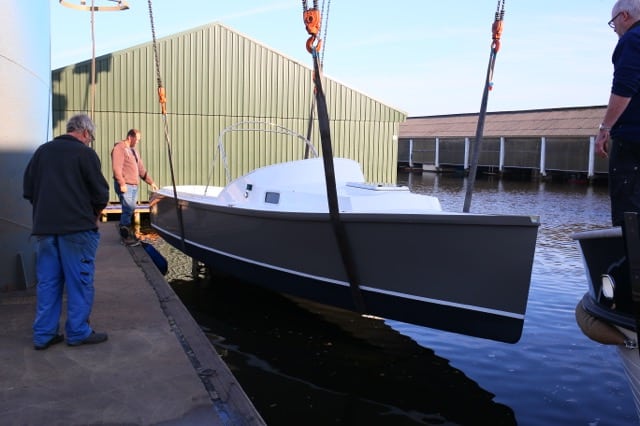

Gallery


Additional information

Weight N/A
Dimensions N/A
Specifications

LOA: 26' 7.95 m Max. Beam: 8' 2,45 m Hull draft at DWL: 22" 0.56 m Displacement DWL: 3,000 lbs 1360 kg PPI at DWL: 320 lbs/in 57 kg/cm Trailer weight: 1,800 lbs. 815 kg Fuel: 75 gallons 300 liters HP 30 to 80 HP 22 to 60 Kw Material: Plywood cored epoxy composite or foam sandwich
