Fast Skiff 12 Boat Plans (FS12)

[FS12] Simple, economical 12′ outboard skiff. Easy to build planing version of our FL12.

$50.00$75.00

Clear
SKU: FS12-plans Category:

Description

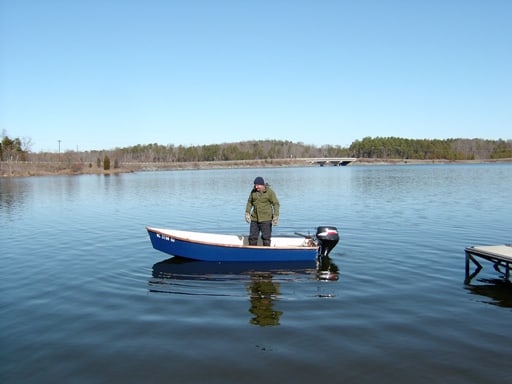

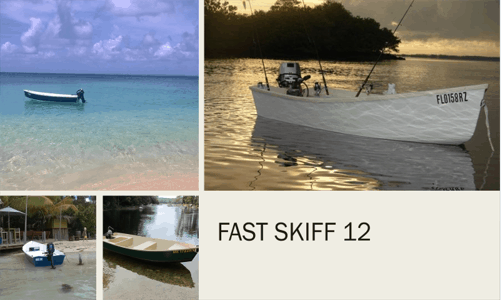

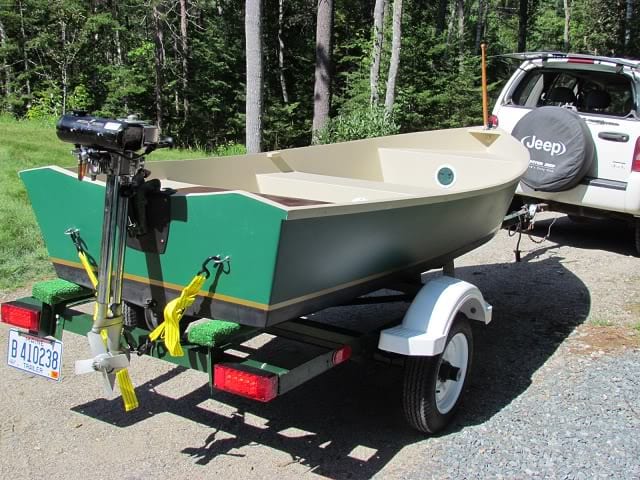

The Fast Skiff 12 is the planing hull, vee bottom version of our FL12. Build a skiff with a 12′ fiberglass boat kit or CNC kit. She is designed for a first time builder and is an excellent introduction to the materials and building methods we use for our large power boats: true composite hull, simple set up on a jig made of a pair of 2 by 4’s.


Click here to see study plans


Related Kits:

CNC Kit – MarinEpoxy Kit – SilverTip Epoxy Kit

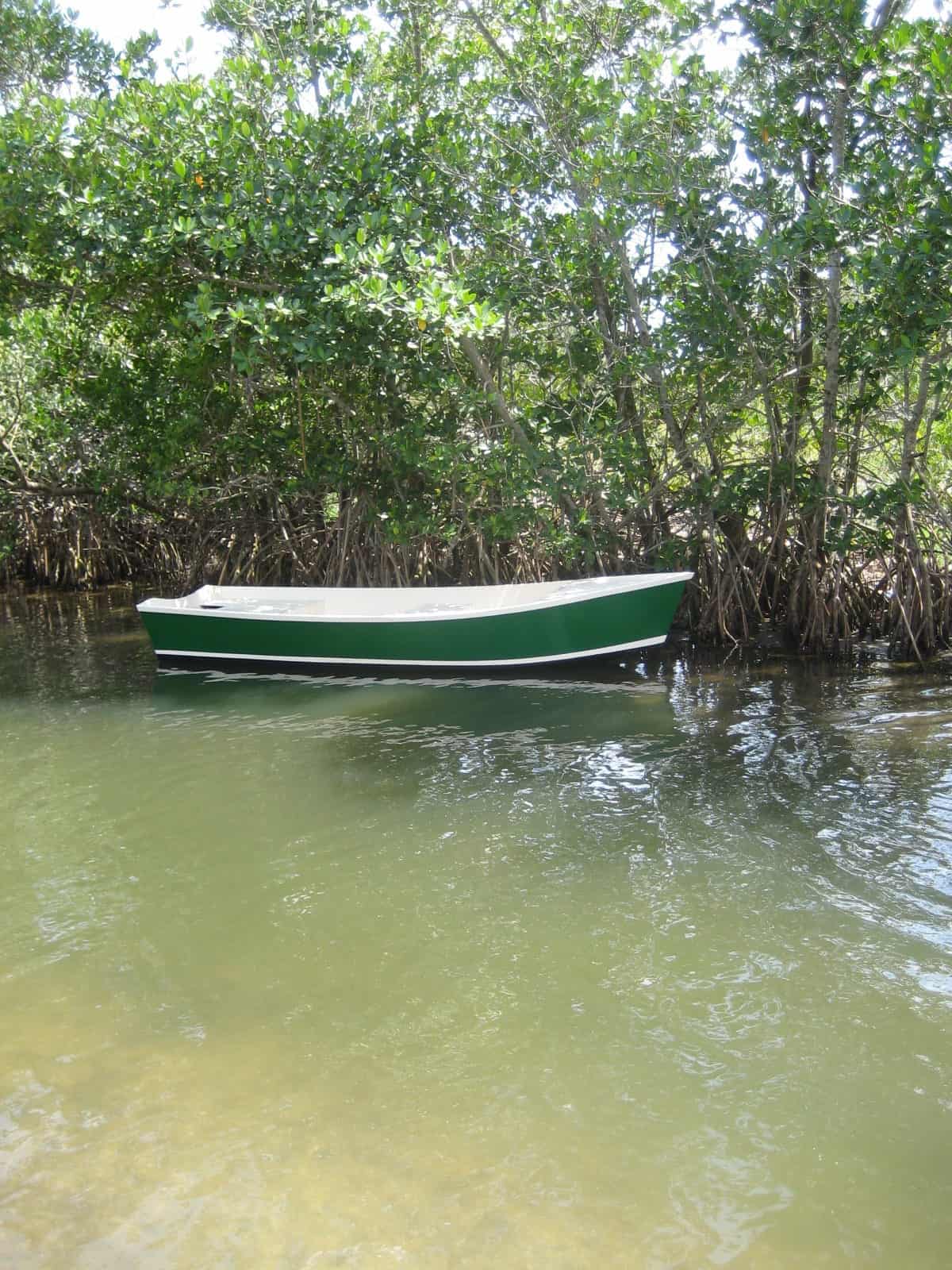

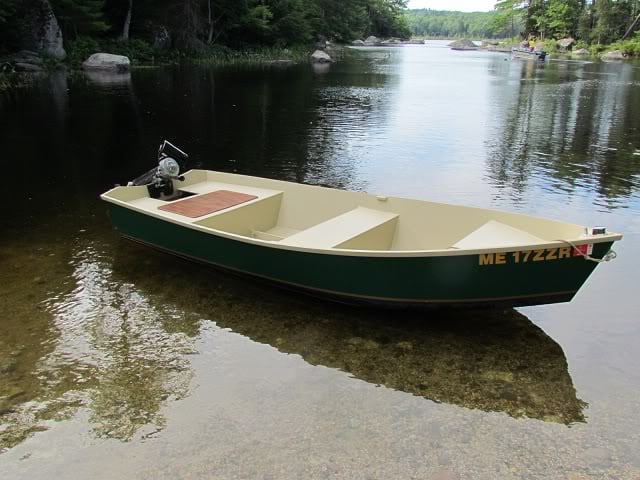

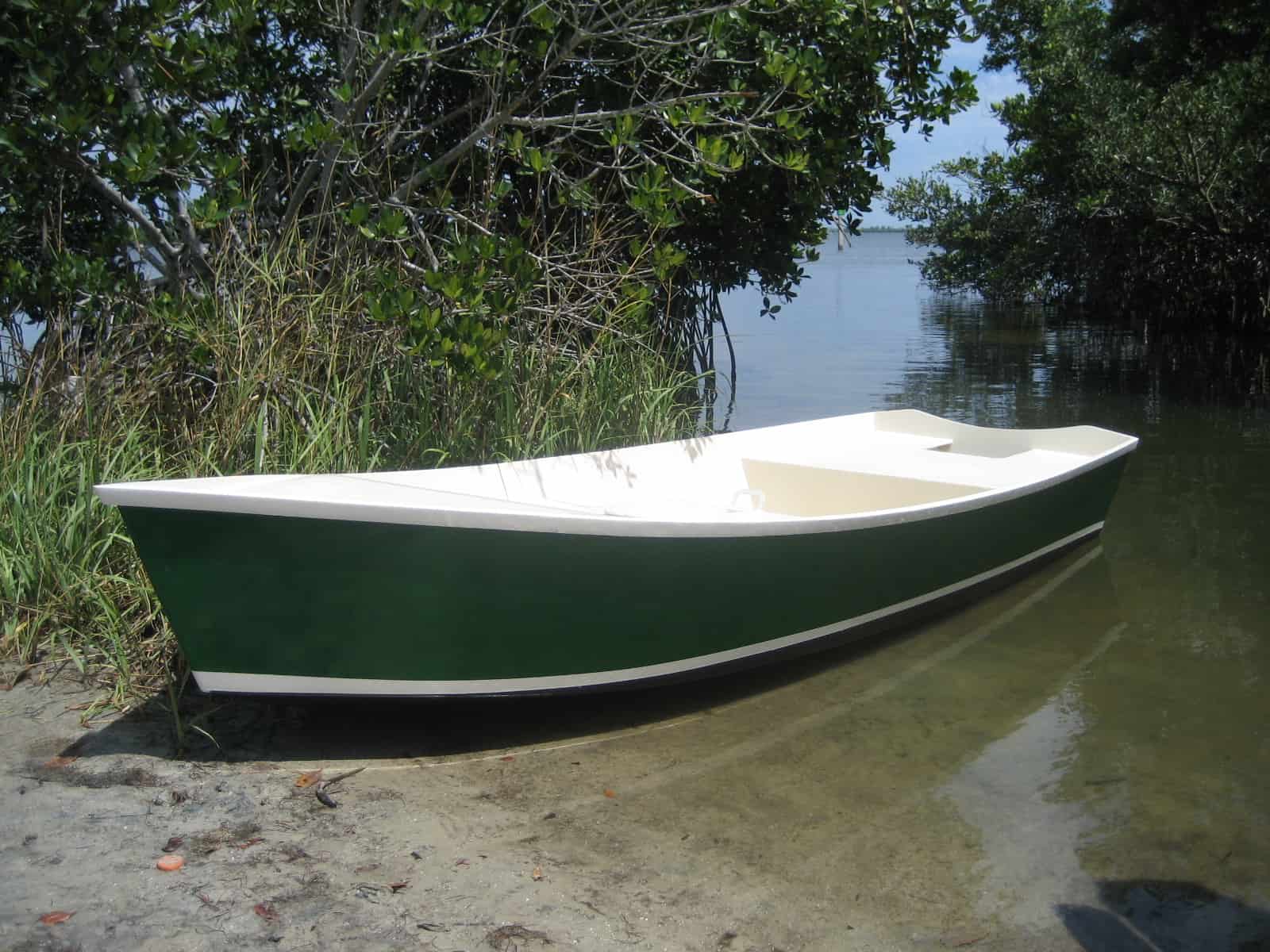

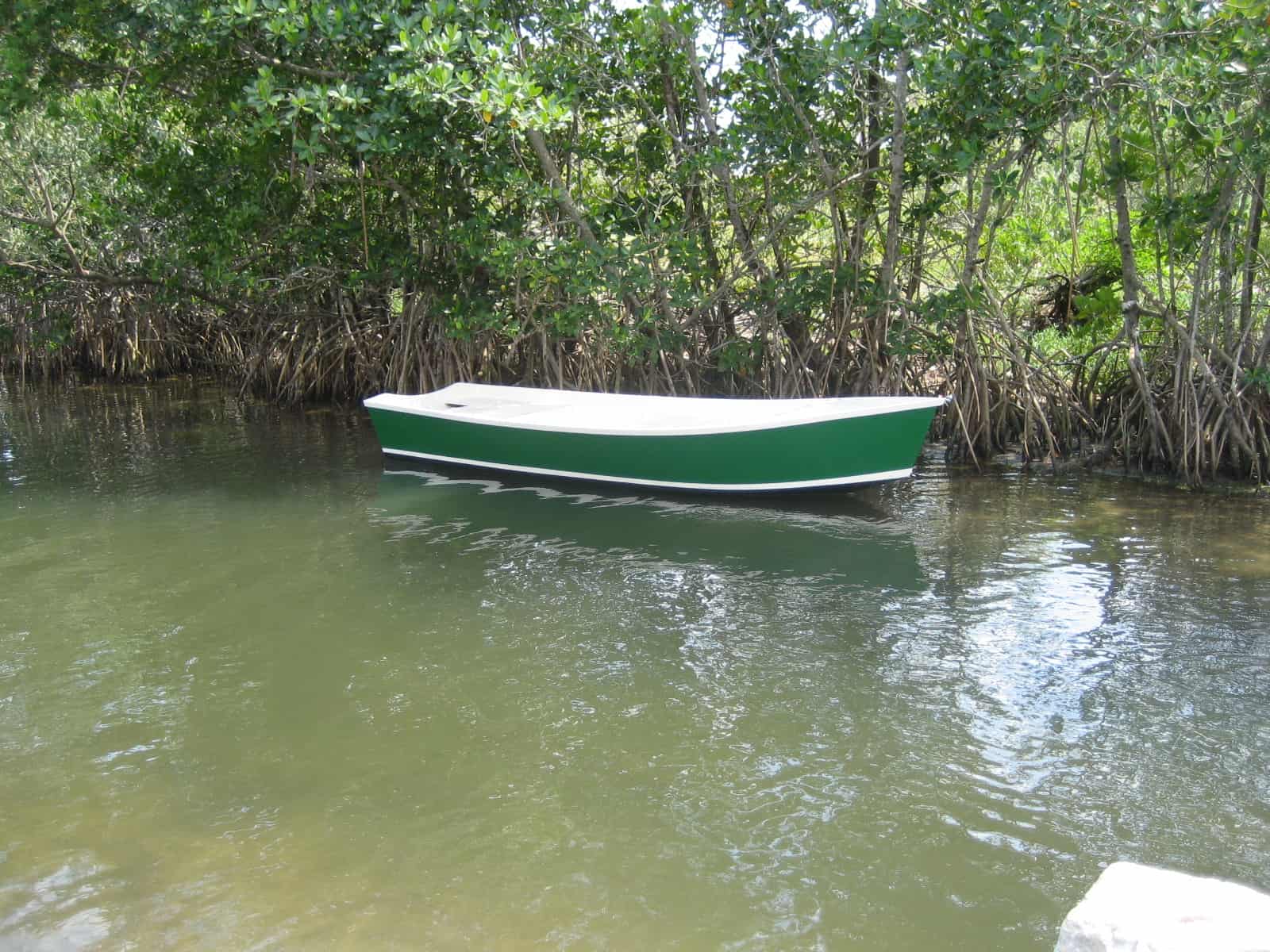

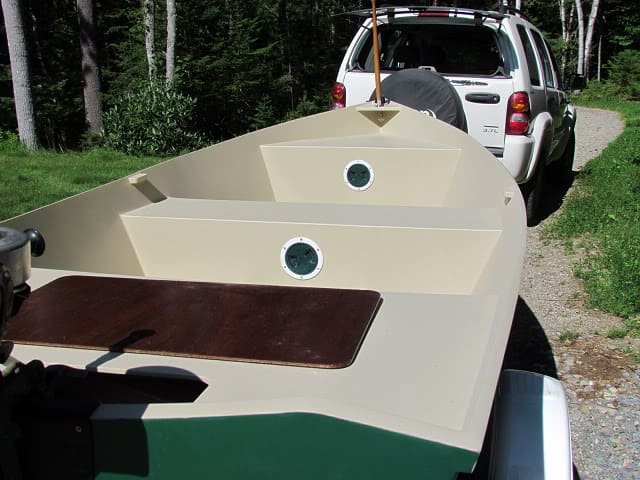

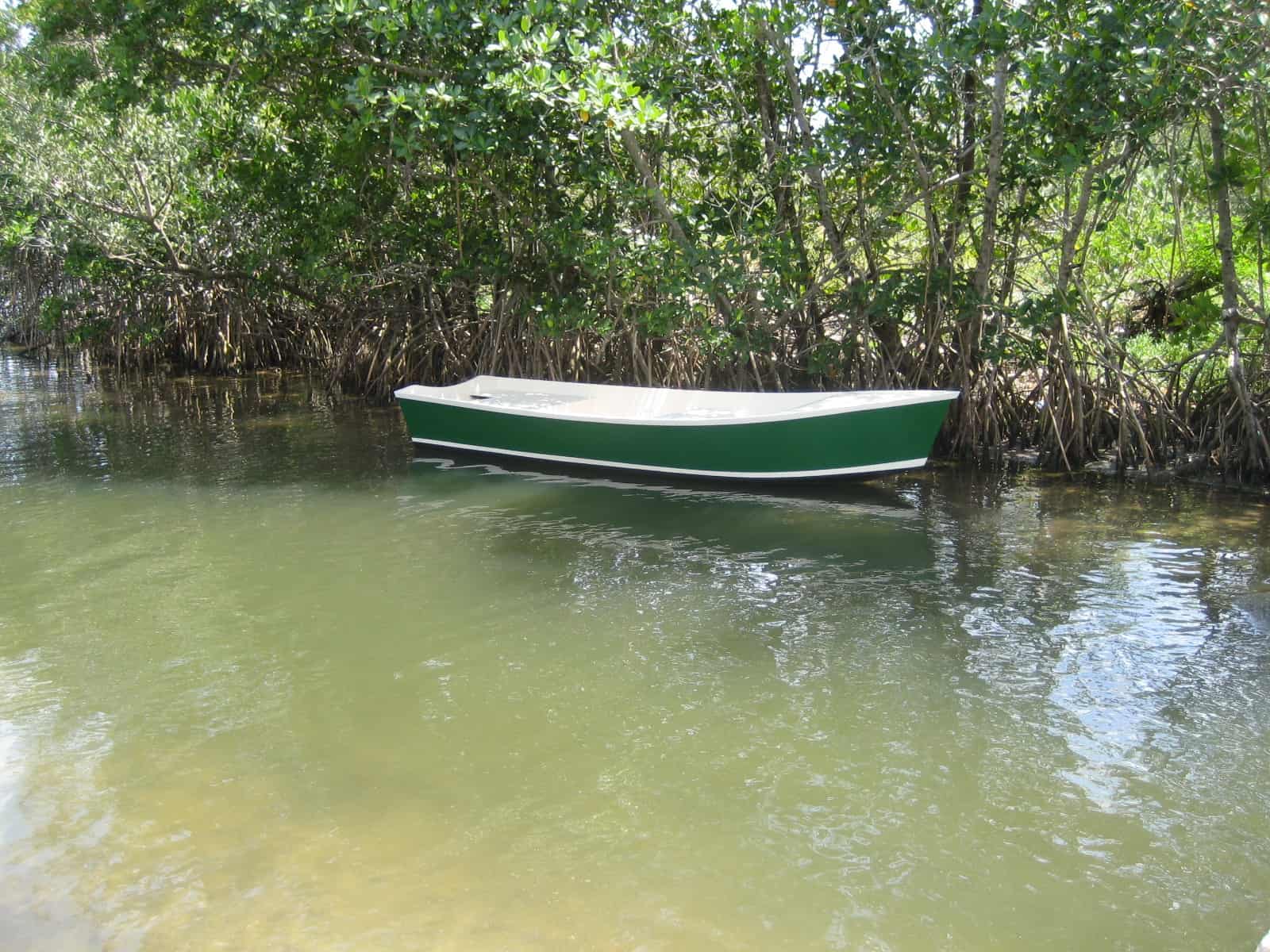

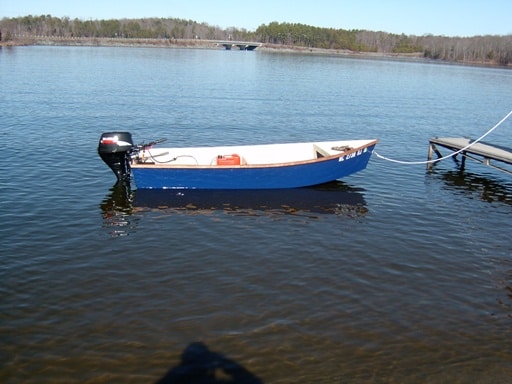

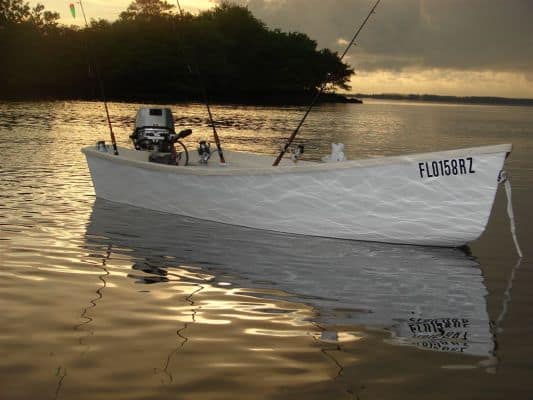

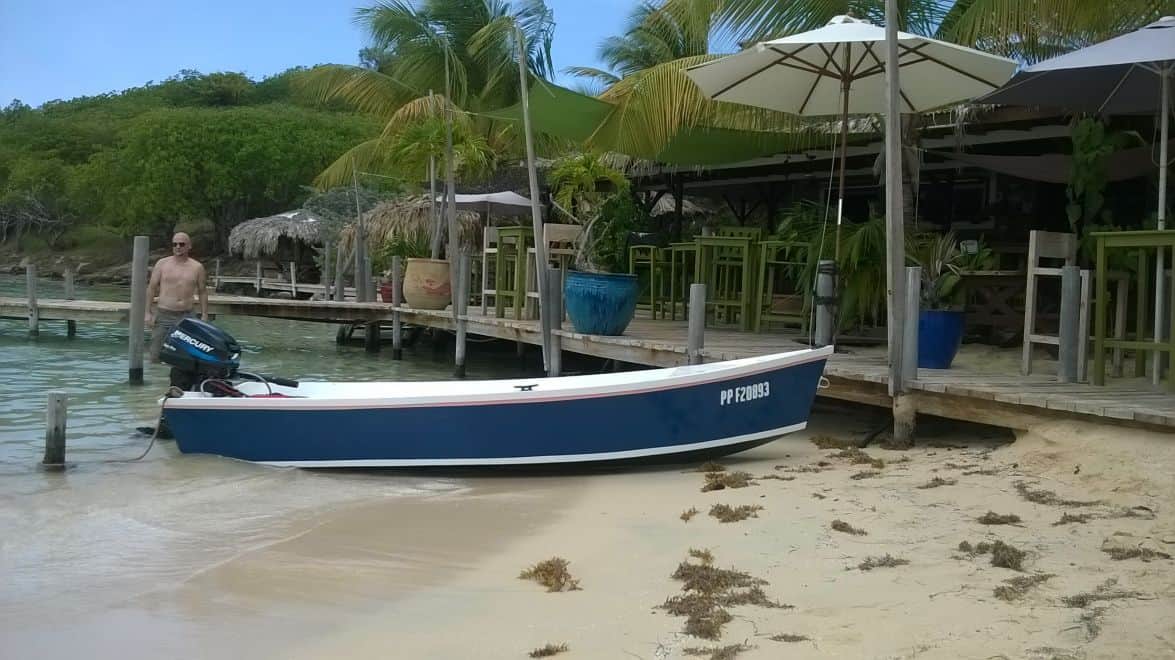

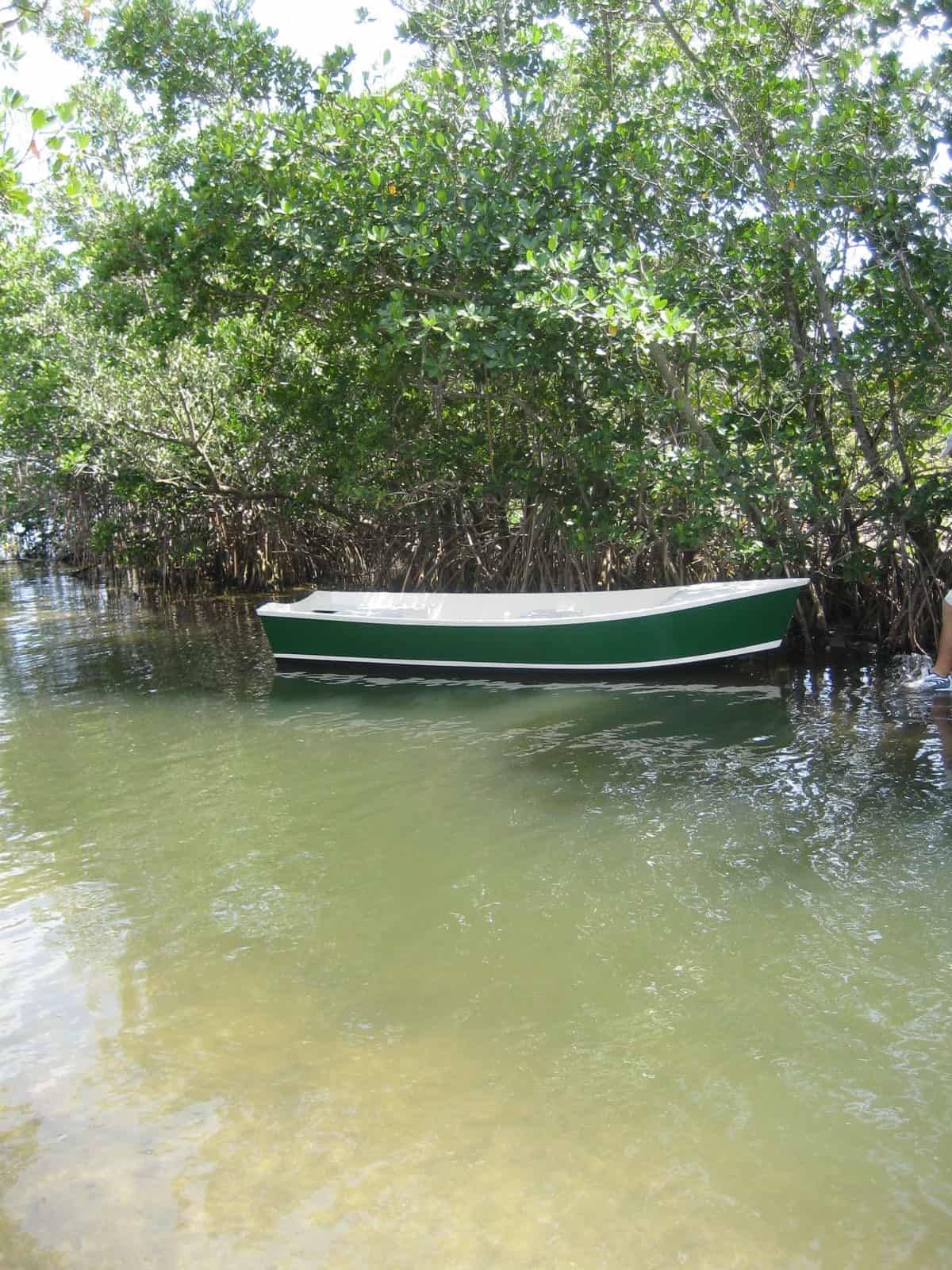

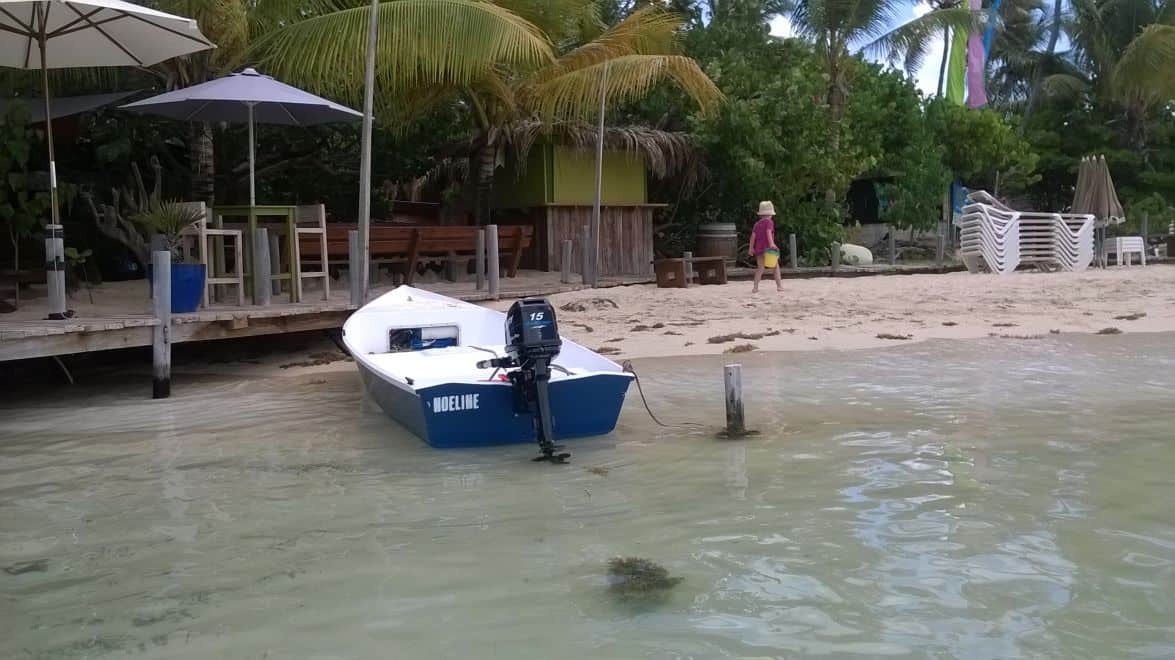

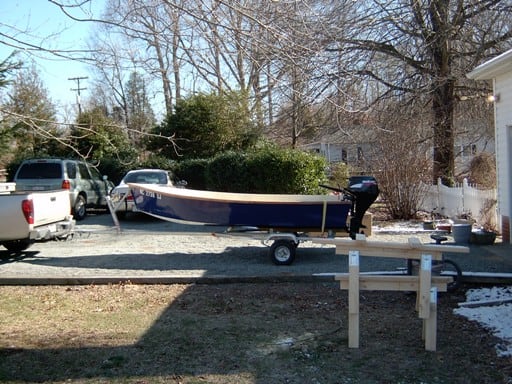

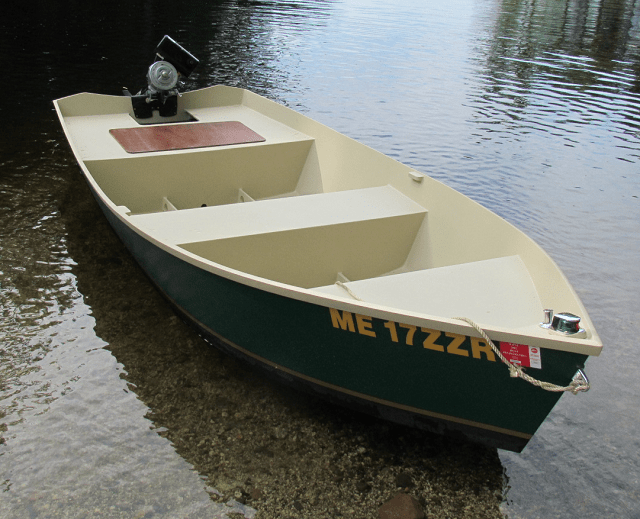

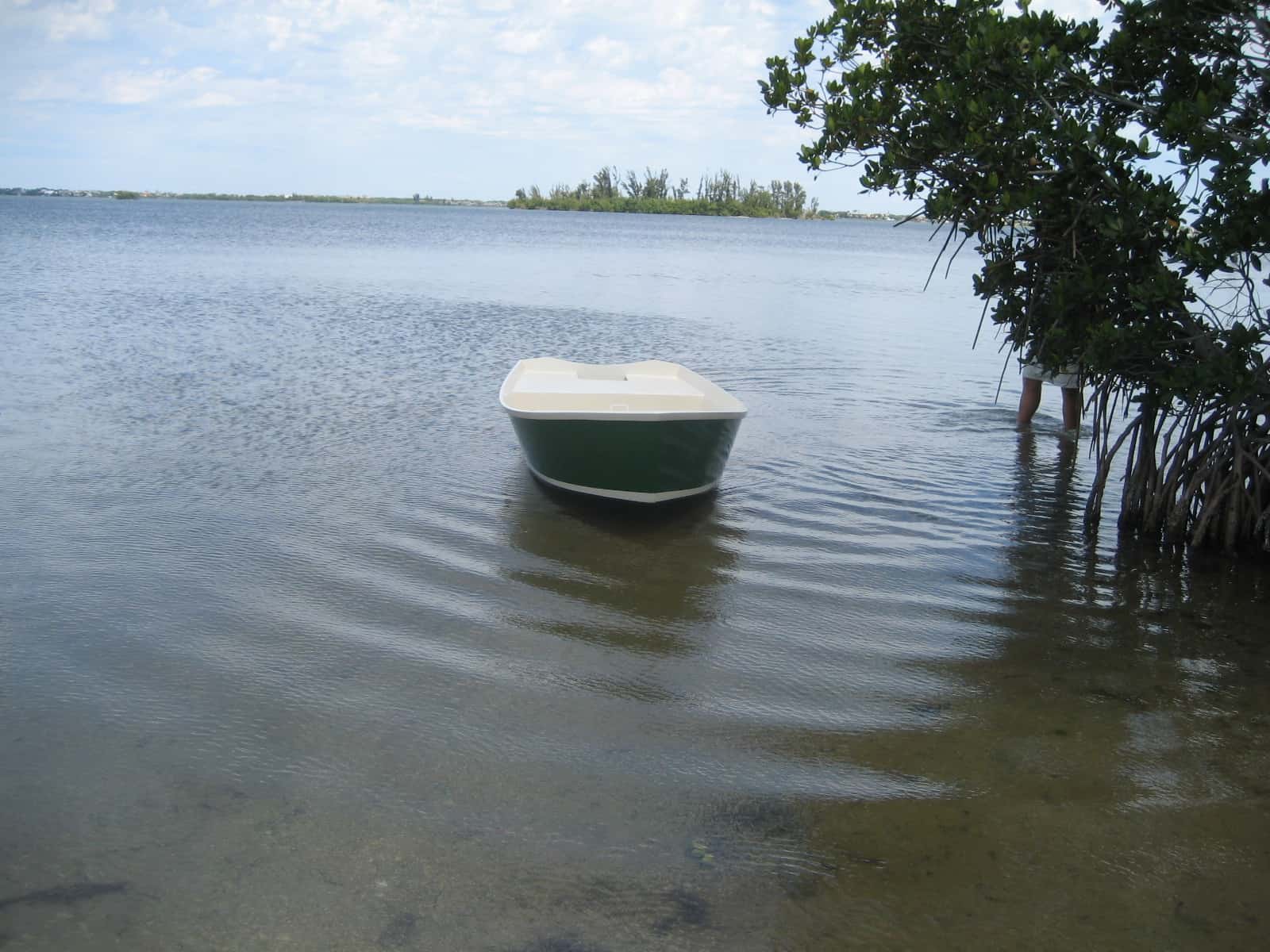

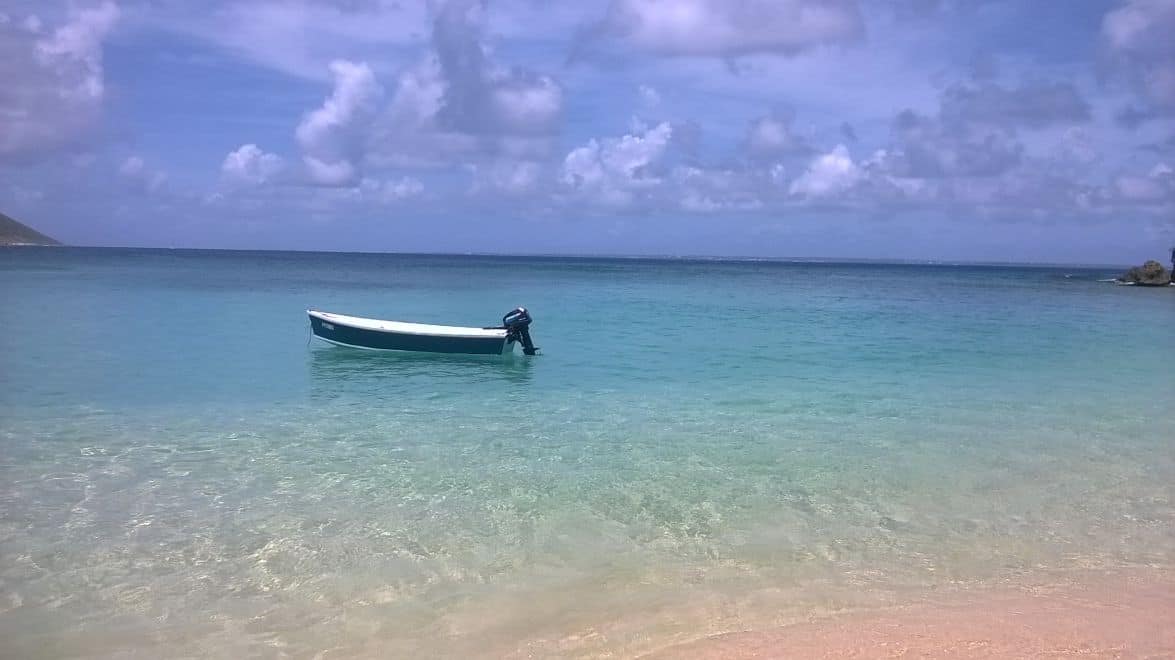

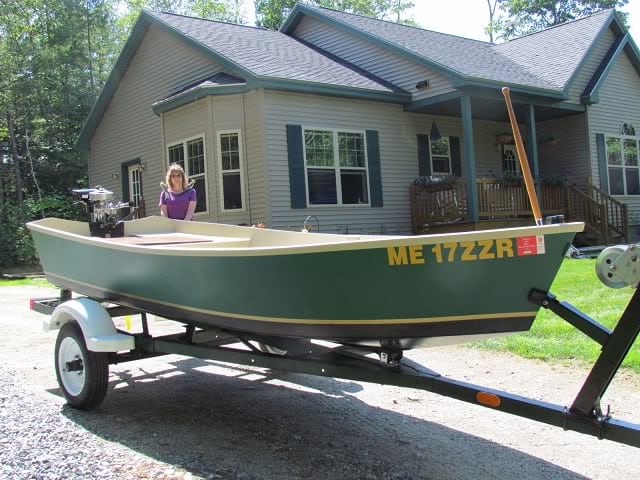

Gallery


Additional information

Weight N/A
Dimensions N/A
Specifications

LOA: 12' 3,65 m Max. Beam: 56 " 1,42 m Hull weight: 160 lbs. 72 kg Designed displacement/draft 450 lbs/5" 205 kg/12 cm PPI at DWL: 160 lbs. 80 kg Depth/Freeboard 22"/32" 56/81 cm Capacity weight/persons per USCG 650 lbs/ 3 persons 300 kg/ 3 persons Outboard recommended/USCG 5 to 15 HP/15 HP 3 to 10 kW/10 kW Material: Stitch & Glue composite
