Novi 23 Boat Plans (NV23)

[NV23] Nova Scotia style outboard boat.

$145.00$170.00

Clear
SKU: NV23-Plans Category:

Description

The Novi 23 combines traditional styling with an efficient, easy to build planing hull. She is not a true lobster boat of the double wedge type or a pure fast planing hull. The hull type is similar to what is now frequently called a picnic boat; a seaworthy planing boat but the topsides are more in the Nova Scotia work boat style. We kept the deep forefoot of the modern fast lobster boat hull but the underbody is a true monohedron. This means that the transition to planing speeds will be smooth without any excessive change of trim and without the wasteful suction of warped bottoms running at an S/L higher than 2.


Click here to see study plans


Related Kits:

CNC Kit – MarinEpoxy Kit – SilverTip Epoxy Kit

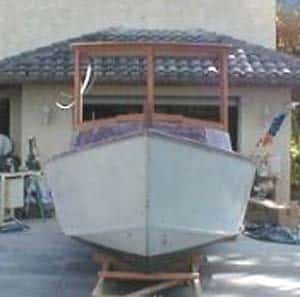

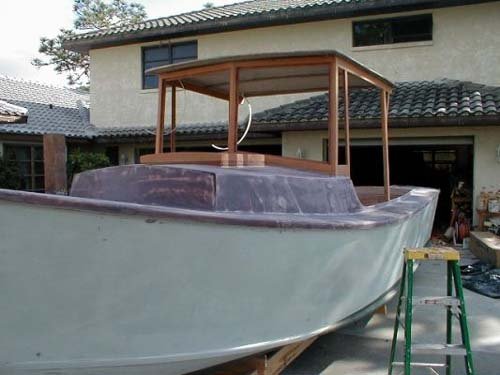

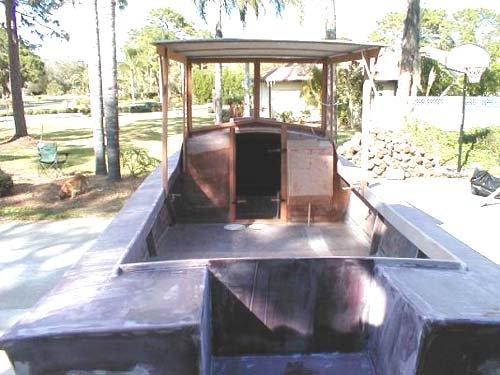

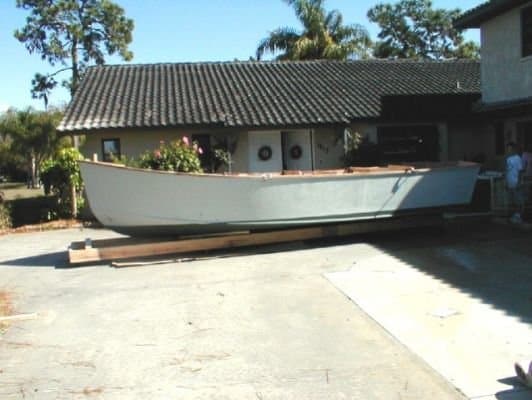

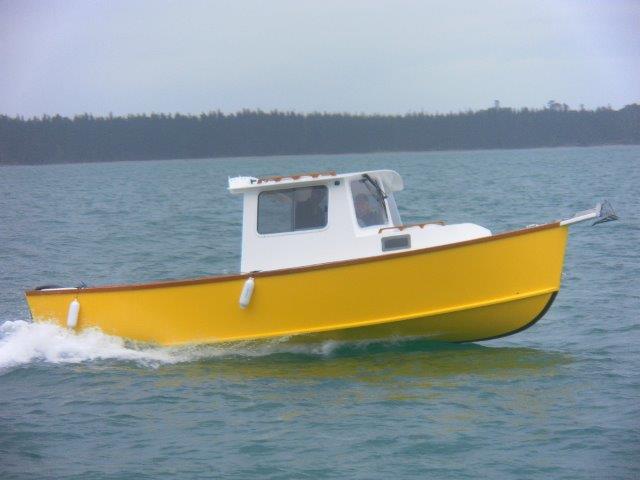

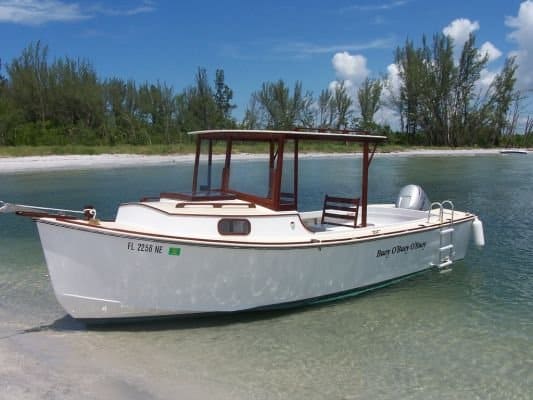

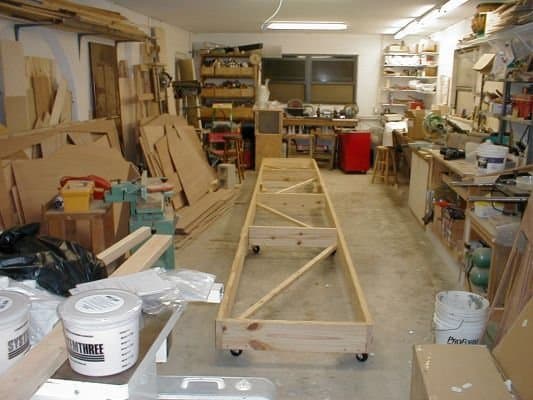

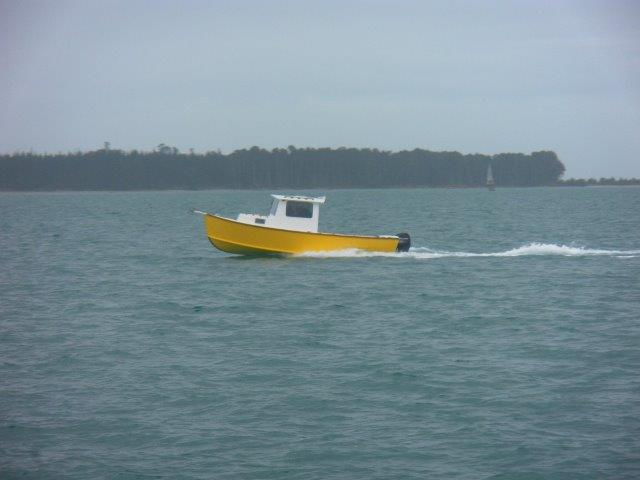

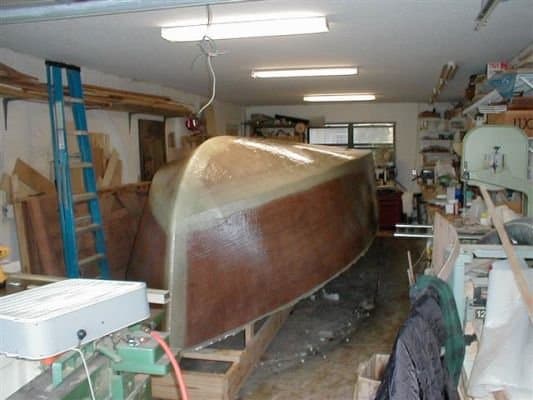

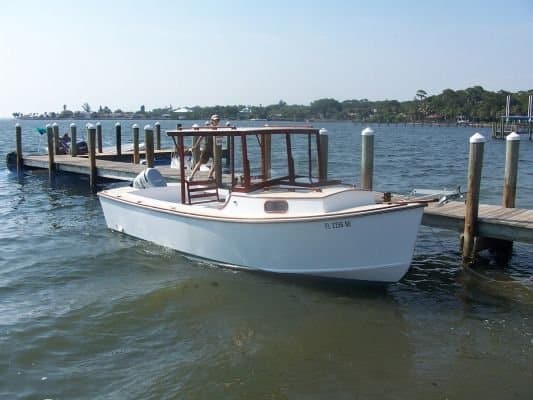

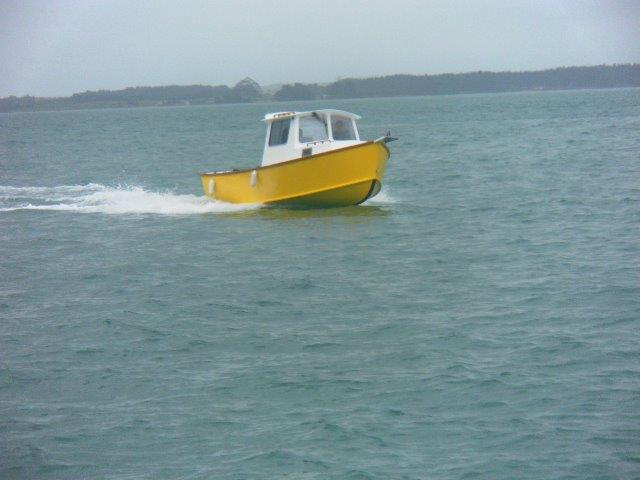

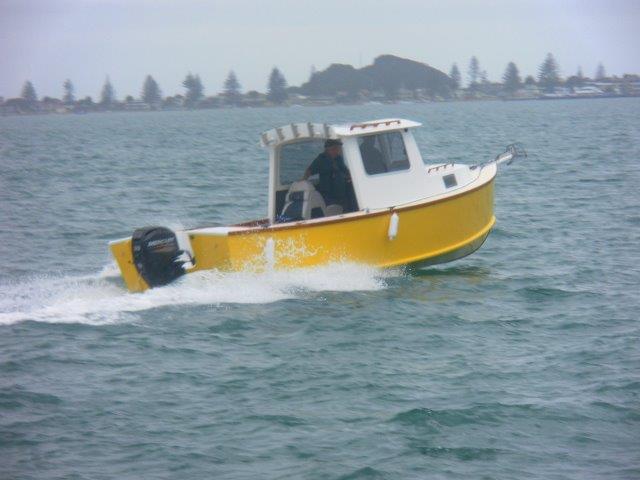

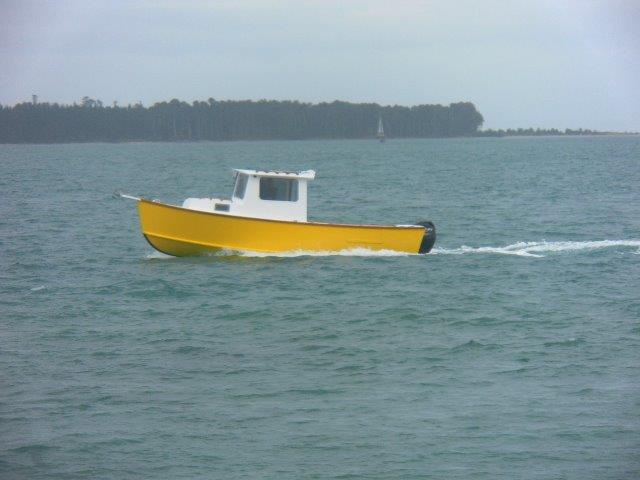

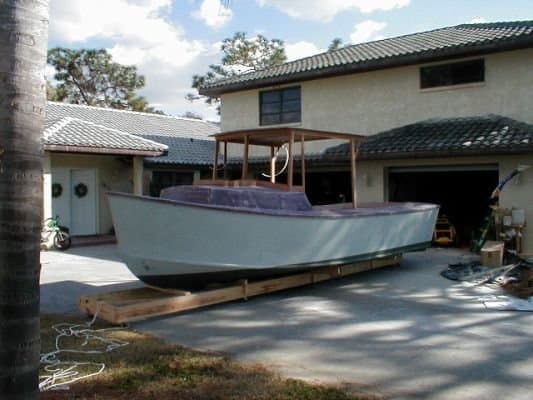

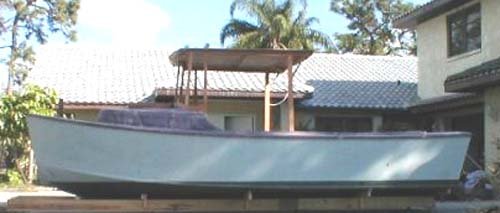

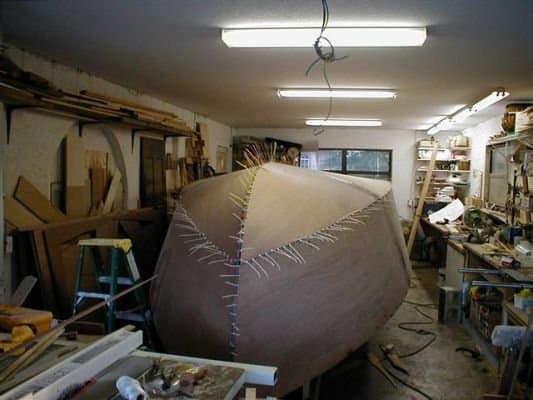

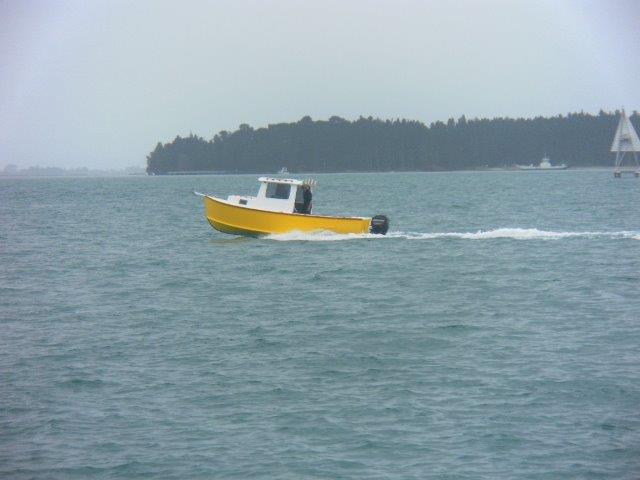

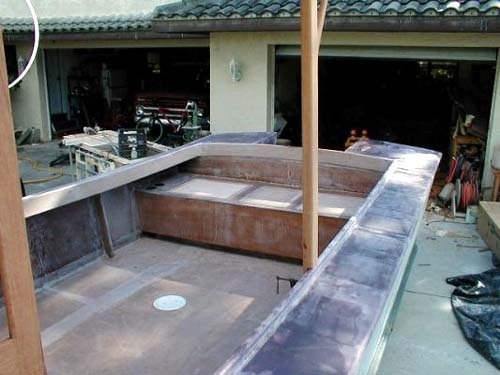

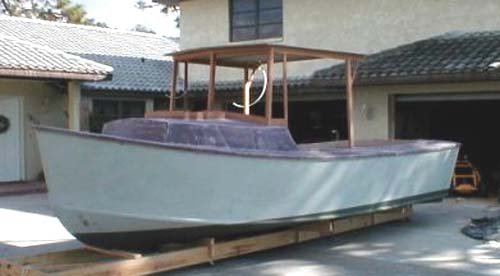

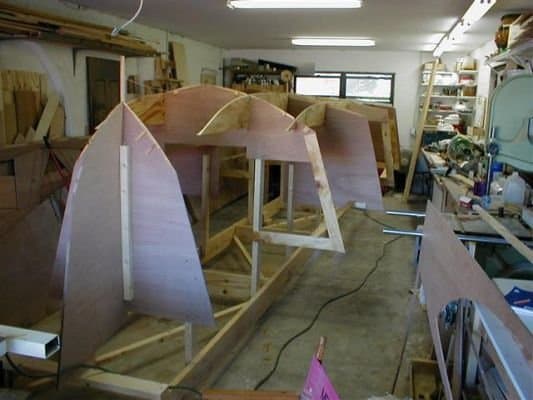

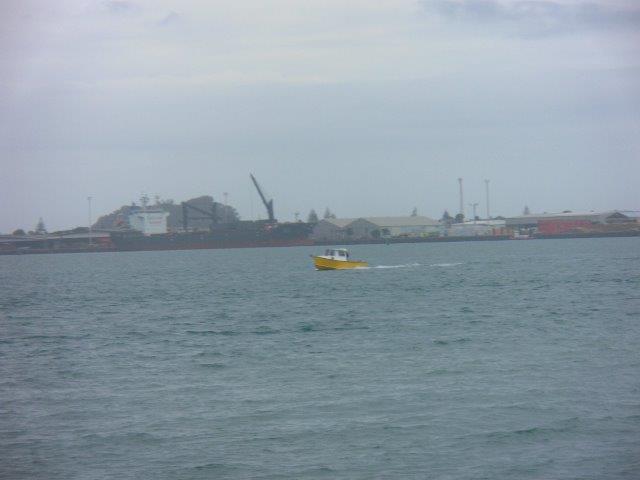

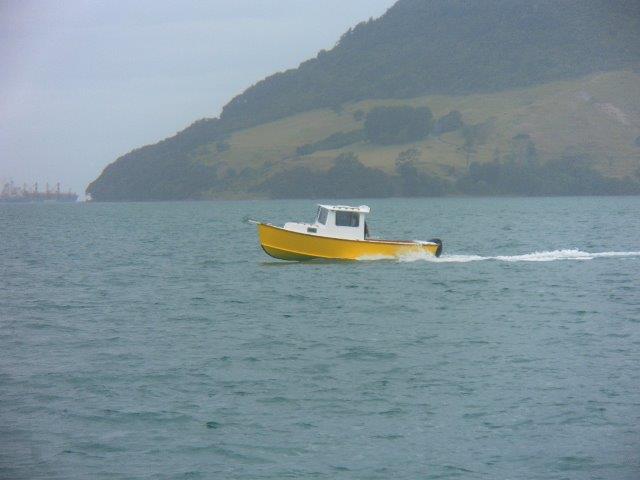

Gallery


Additional information

Weight N/A
Dimensions N/A
Specifications

LOA: 22' 10" 6,96 m Max. Beam: 8' 2 " 2,49 m Hull Draft at DWL: 8" 203 mm Hull weight: 1500 lbs. 680 kg Displacement: 2500 lbs. 1140 liters PPI at DWL: 560 lbs. 255 kg Recommended HP 50-100 35-75 Kw
