Pilot 21 Boat Plans (P21)

[P21] The Pilot 21 is a larger version of our P19, the vee hull version of our HM19.

$135.00$160.00

Clear
SKU: P21-Plans Category:

Description

The Pilot 21 (P21) is a larger version of our P19, the vee hull version of our HM19. The proven hull shape with a typical moderate vee similar to the C21. 45 degrees at the cutwater, 10 degrees at the transom. Sufficient deadrise to run smoothly in bad weather but moderate enough to provide good stability at slow speed without the wild roll typical of deeper vee hulls.
The hull shape is related to our C21 but not identical: see the bow and sheerline for example. The topsides are built with one wide panel instead of two overlapping ones.


Click here to see study plans


Related Kits:

CNC Kit – MarinEpoxy Kit – SilverTip Epoxy Kit

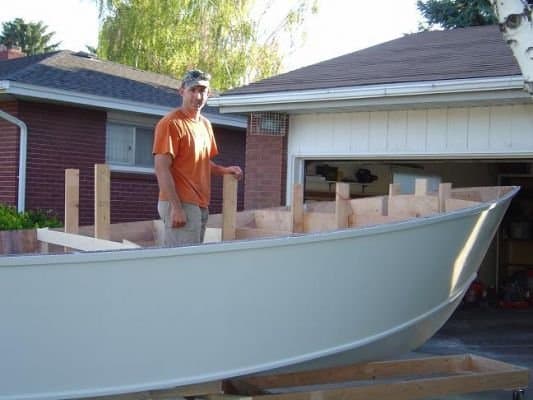

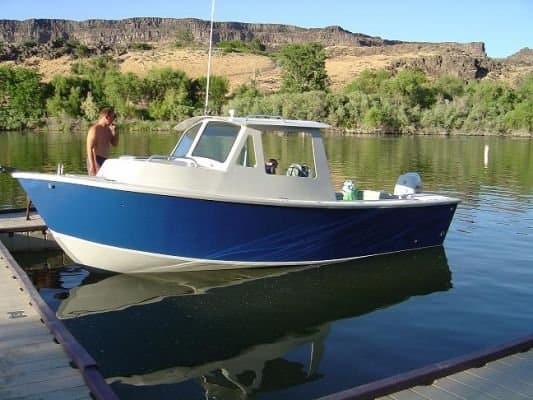

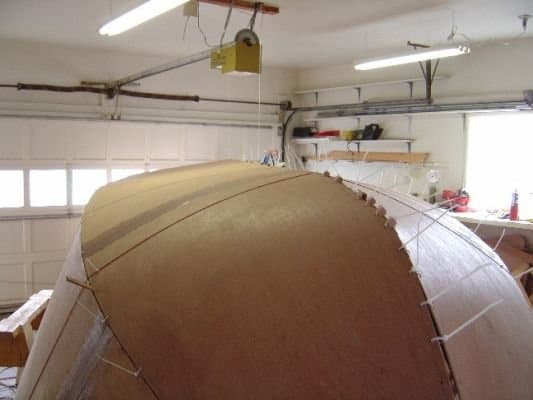

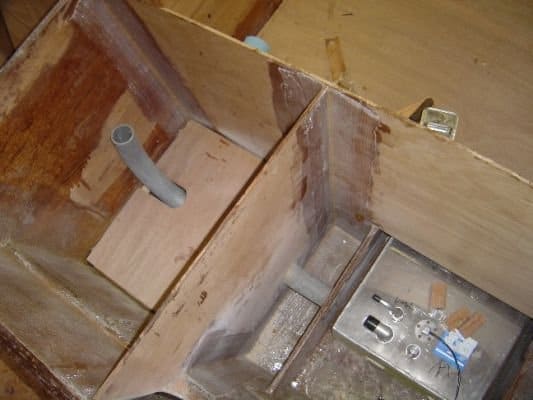

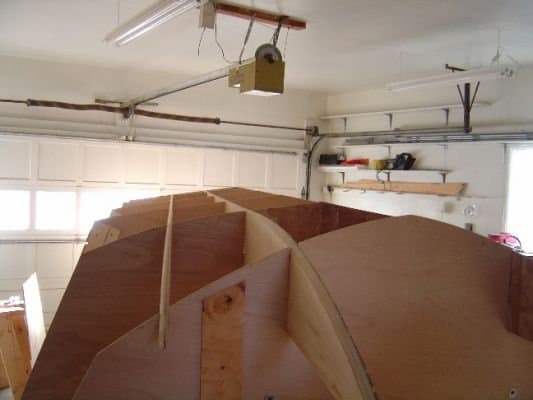

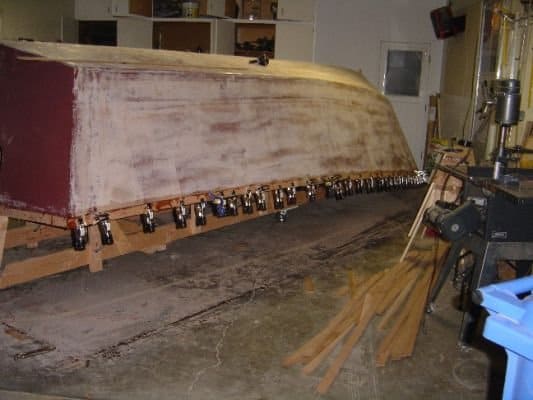

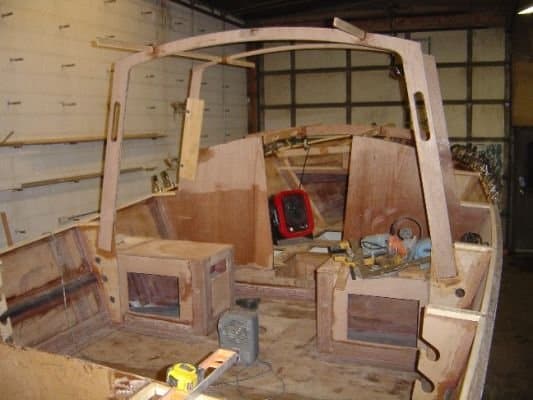

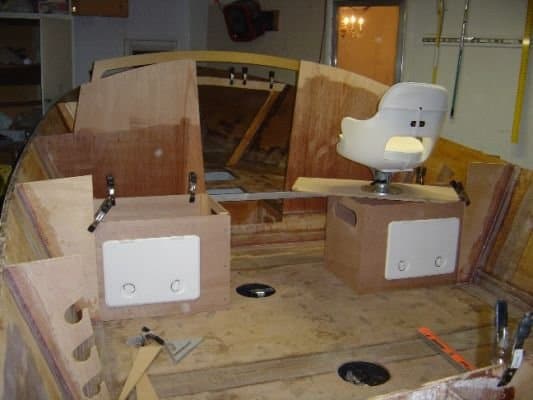

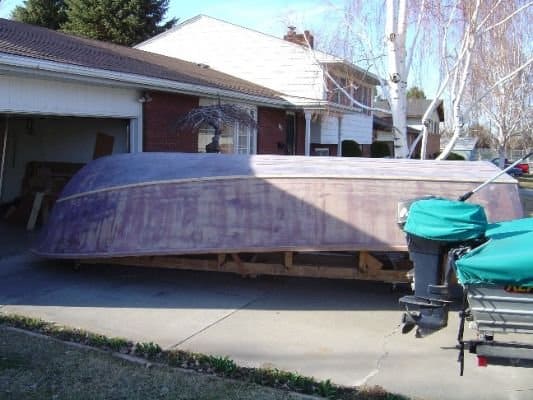

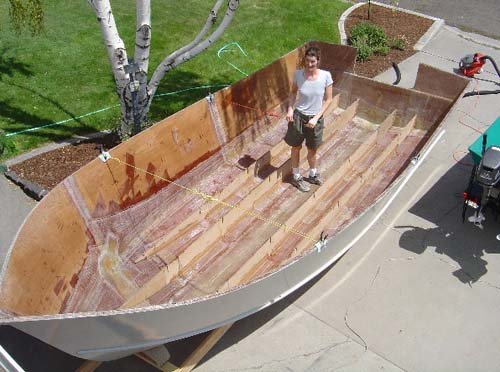

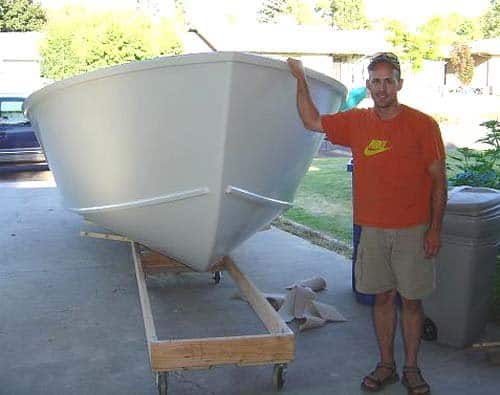

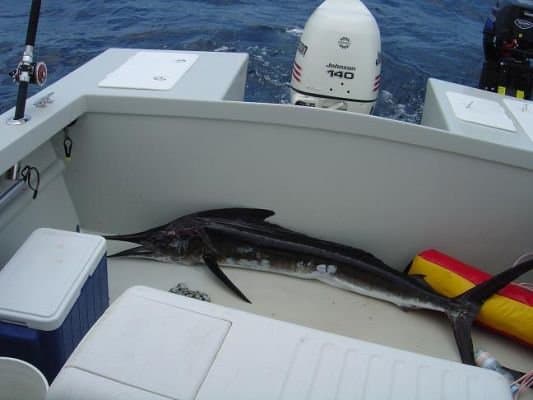

Gallery


Additional information

Weight N/A
Dimensions N/A
Specifications

LOA: 20'-11" 6,38 m Max. Beam: 8'-6" 2,59 m Deadride at Cutwater 53 degrees Deadride 45 to 10 degrees – Fuel: 2 X 30 gallons 240 liters Hull weight*: 1,300 lbs. 591 kg HP 90 HP 150 Max
