Fast Skiff 19 Boat Plans (FS19)

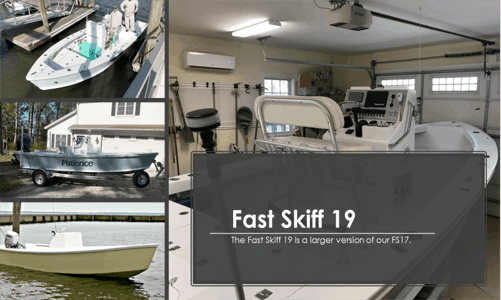

[FS19] Fast Skiff 19: easy to build but able vee hull. This is the larger version of our FS17.

$100.00$125.00

Clear
SKU: FS19-plans Category:

Description

The Fast Skiff 19 (FS19) is a larger version of our FS17. The FS17 design is based on the Simmons Sea Skiff of which there are also two different sizes. Just as for the 17′ version, we did away with the transom opening which is considered unsafe and penalized by the USCG standard but besides that, the FS19 has hull lines close to the Simmons Sea Skiff: variable dead rise and relatively small water plane for a boat that size. This gives a seaworthy boat with a very smooth transition between displacement and planing speeds. Like the FS17, the FS19 does not push a large bow wave before getting on plane and in bad weather, will keep running smoothly at semi-displacement speed. Deadrise is the same than our FS17: 25 degrees at cutwater, almost none at transom. This is similar to most large sportfishing boats.


Click here to see study plans


Related Kits:

CNC Kit – MarinEpoxy Kit – SilverTip Epoxy Kit

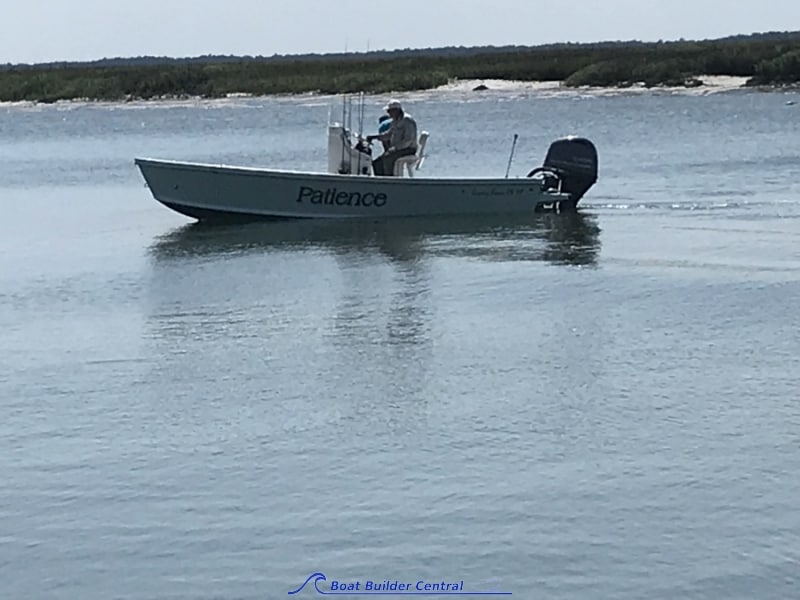

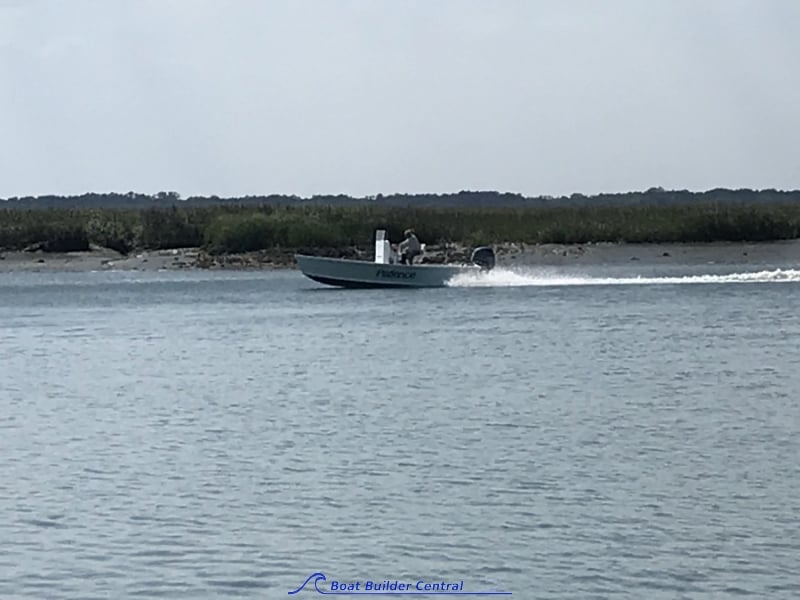

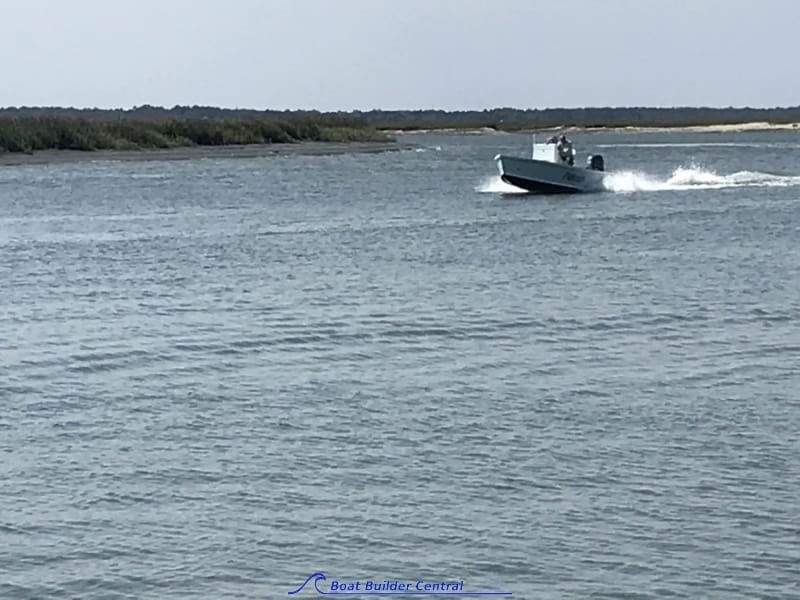

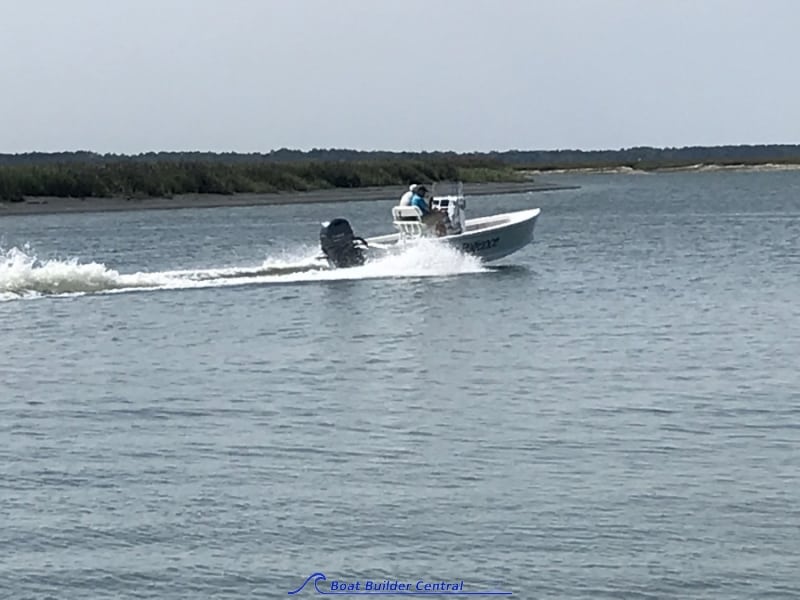

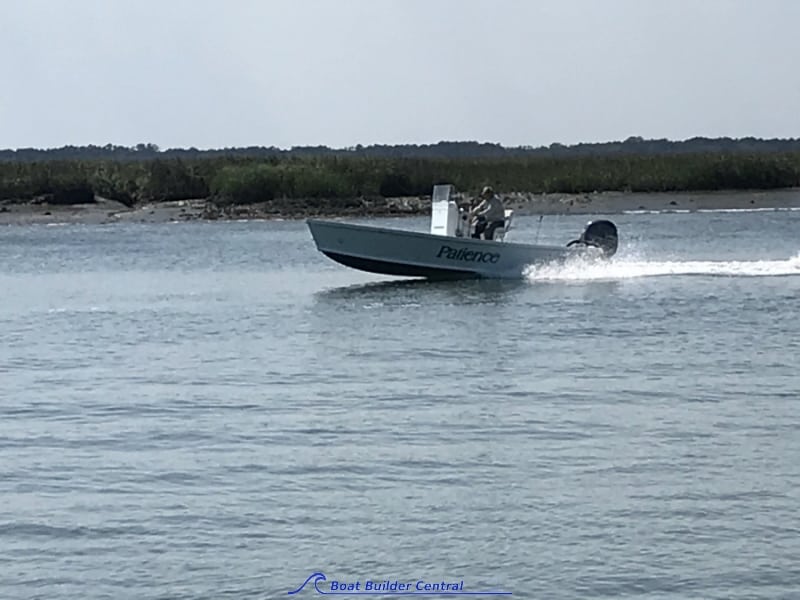

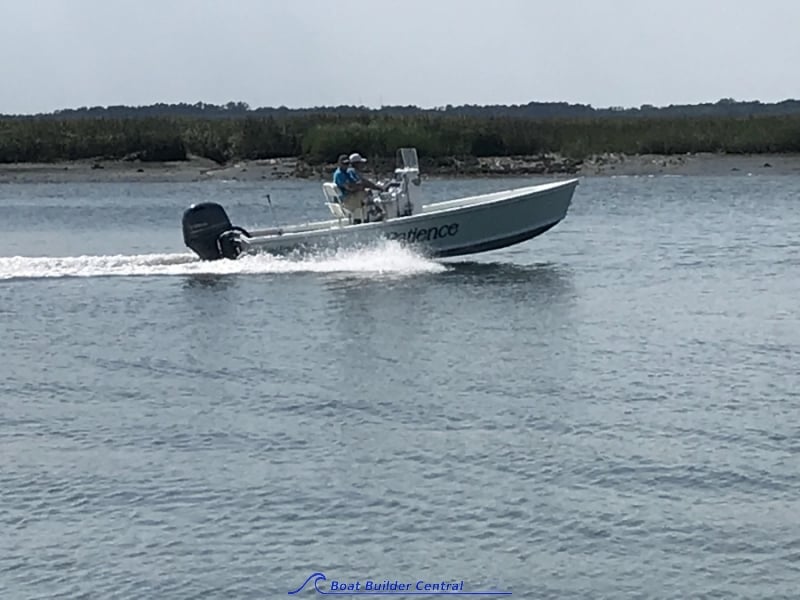

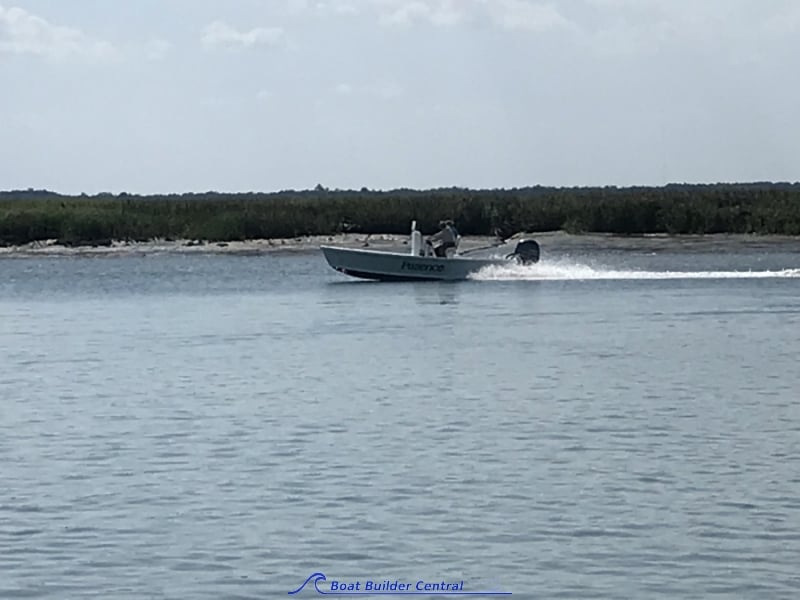

Gallery


Additional information

Weight N/A
Dimensions N/A
Specifications

LOA: 19’6” 5,95 m Max. Beam: 8’ 2,44 m Recommended/Max.: 50-115 HP 35-85 kW Hull weight: 625 lbs. 250 kg Hull draft at DWL: 8" 20 cm. Material: Stitch & Glue composite
