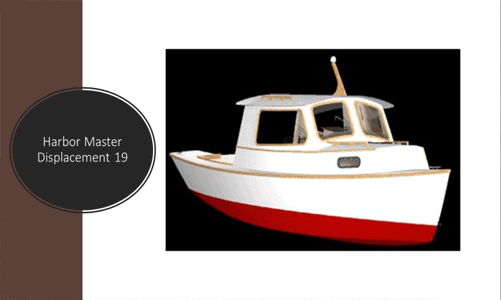

Harbor Master Displacement 19 Boat Plans (HMD19)

[HMD19] The Harbor Master Displacement 19 is another evolution of the popular HM19. It uses a true displacement hull that is suited for lower speed and has low power requirements.

$126.00 – $151.00

SKU: HMD19-plans Category:

Description

The HMD19 is another evolution of the popular HM19. It uses a true displacement hull that is suited for lower speed and has low power requirements. What we kept from the original hull was the high bow and a very similar nice classic sheer line.

Click here to see study plans

Related Kits:

CNC Kit – MarinEpoxy Kit – SilverTip Epoxy Kit

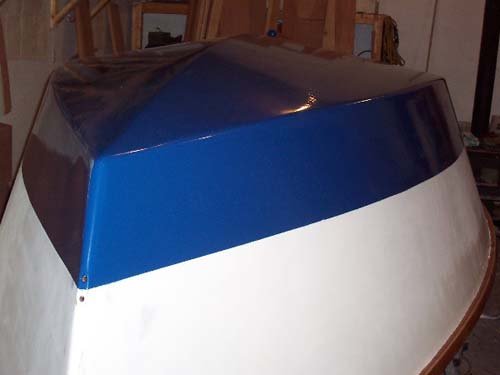

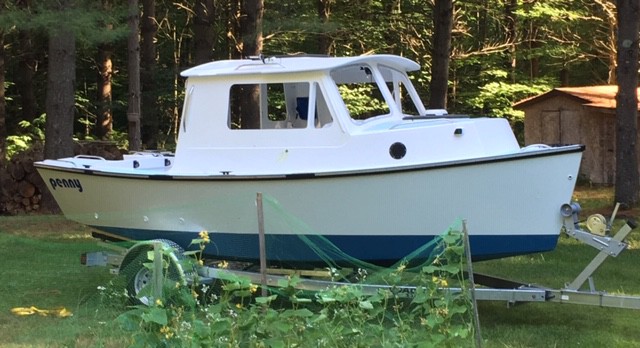

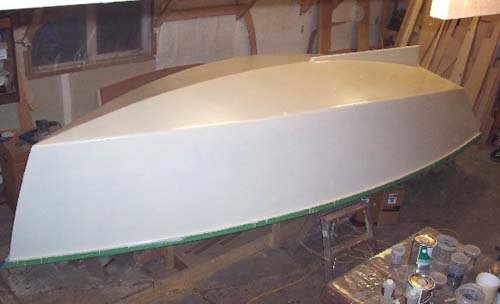

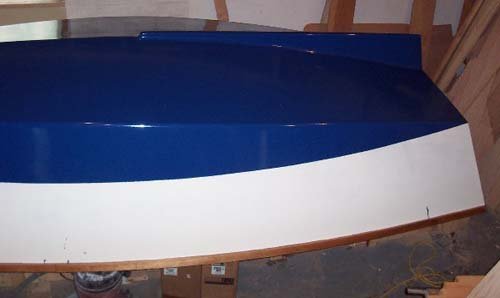

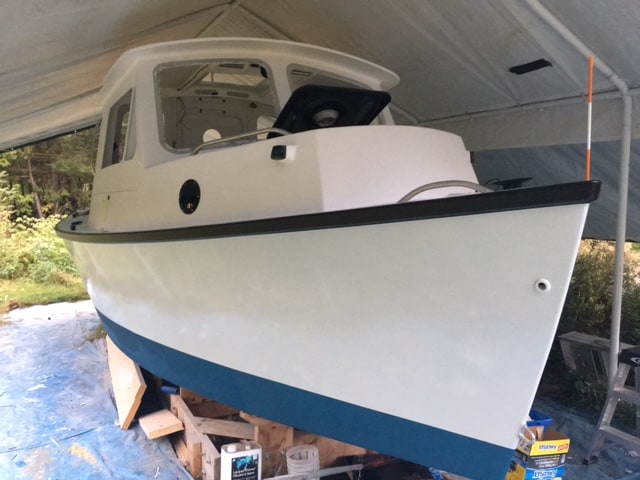

Gallery

Additional information

Weight N/A
Dimensions N/A
Specifications

LOA: 18'-5 " 5,62 m Max. Beam: 7'-10" 2,39 m Hull draft: 12" 318 mm Hull Only Weight: 1,055 lbs. 480 kg Displacement at DWL: 2,400 lbs. 1,091 kg PPI at DWL: < 370 lbs. 168 kg Recommended. HP 10-15 Material: Stitch & Glue
