Pilot 19 Boat Plans (P19)

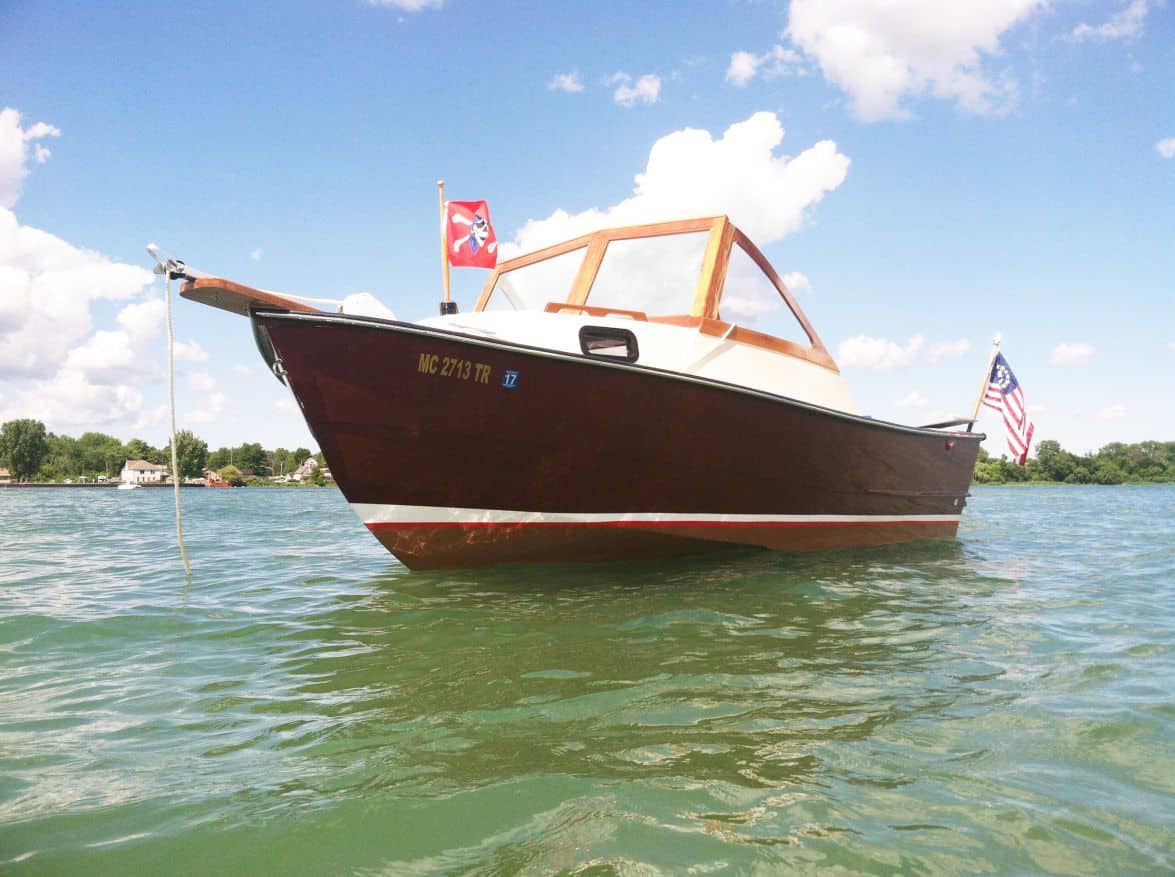

[P19] The Pilot 19 is the vee hull version of our HM19.

$125.00$150.00

Clear
SKU: P19-plans Category:

Description

The Pilot 19 is the vee hull version of our HM19. While the HM19 offers a maximum of stability and is very economical to build and operate thanks to its dory type flat bottom hull, several builders requested a vee hull powerboat plan to handle choppy waters without pounding.


Click here to see study plans


Related Kits:

CNC Kit – MarinEpoxy Kit – SilverTip Epoxy Kit

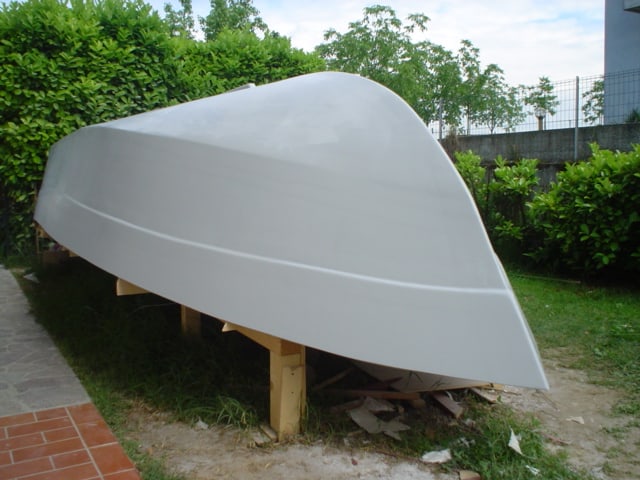

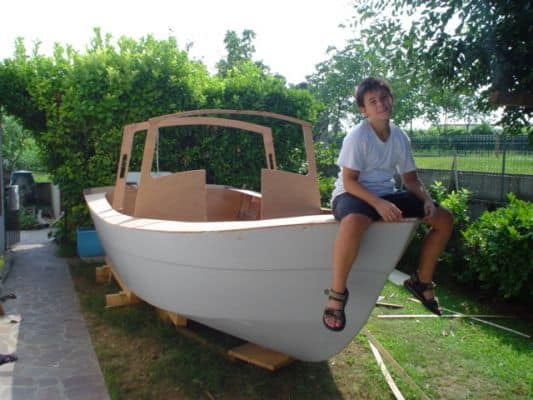

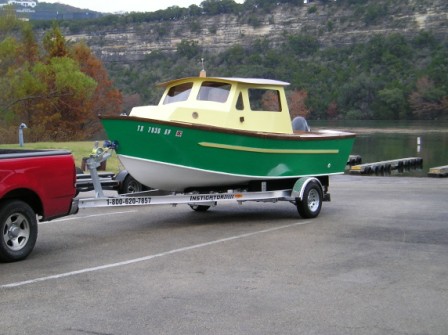

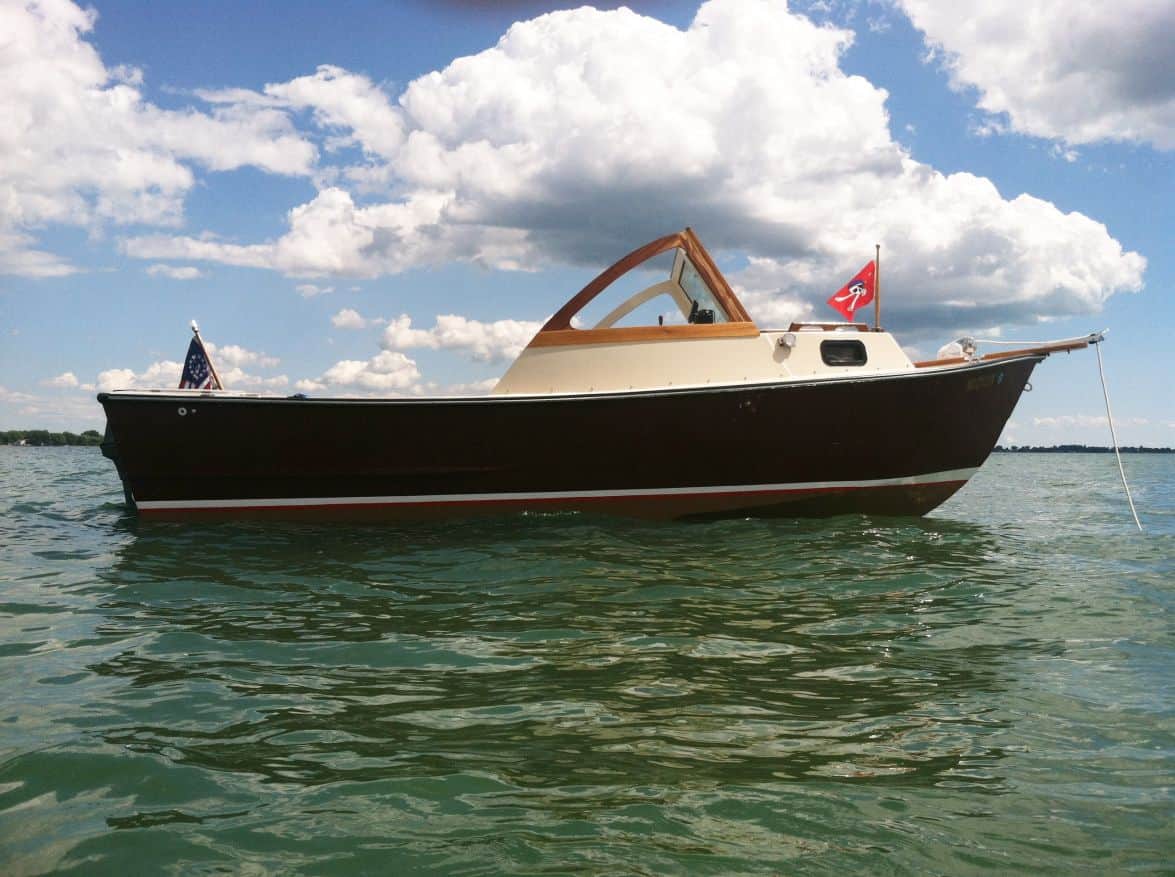

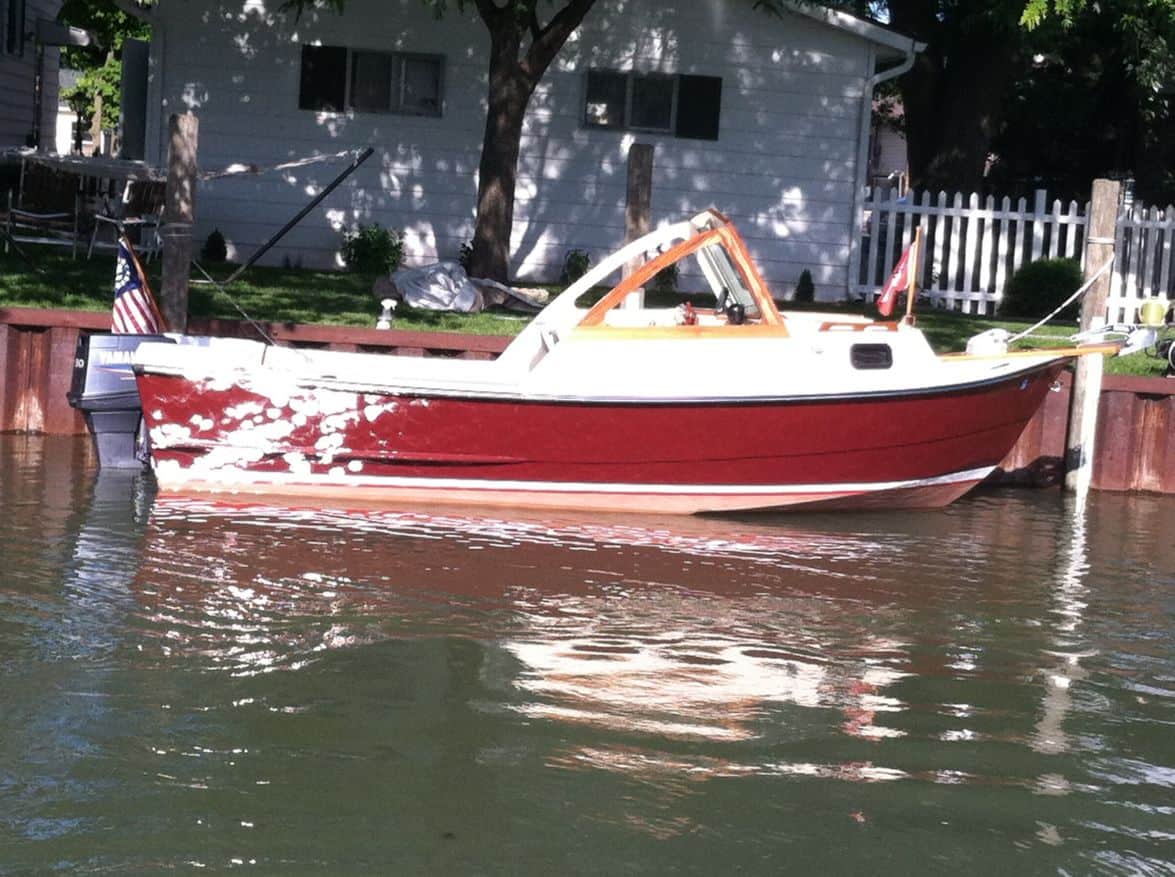

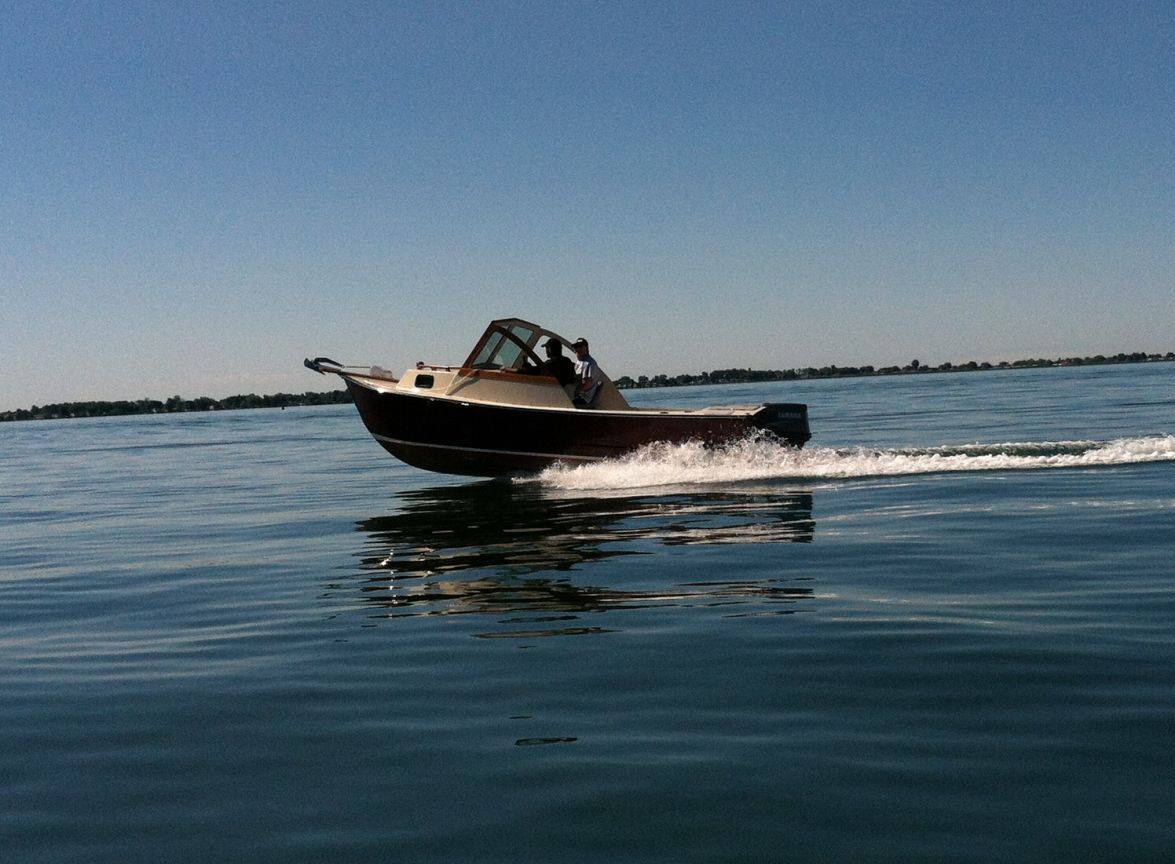

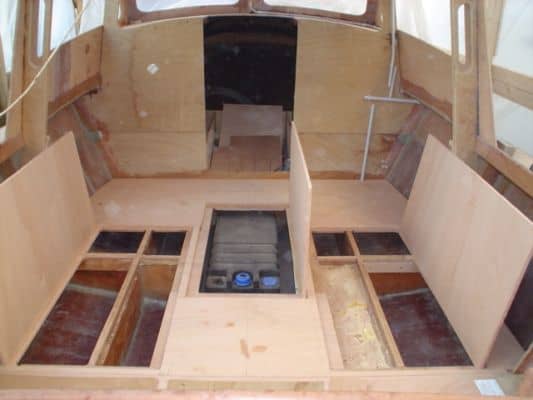

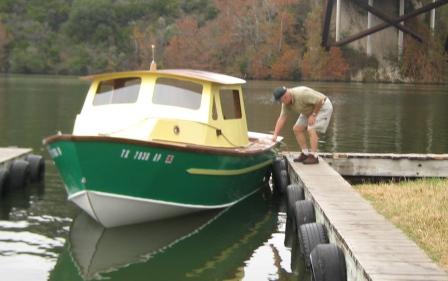

Gallery


Additional information

Weight N/A
Dimensions N/A
Specifications

LOA: 18'-11" 5,85 m Max. Beam: 7'-8" 2,34 m Hull draft at DWL: 8" 203 mm Displacement DWL: 1,900 lbs 864 kg PPI at DWL: 425 lbs 193 kg Hull only weight: 1,300 lbs. 591 kg Fuel: 60 gallons 240 liters HP 90 HP 125 max Material: Stitch & Glue
